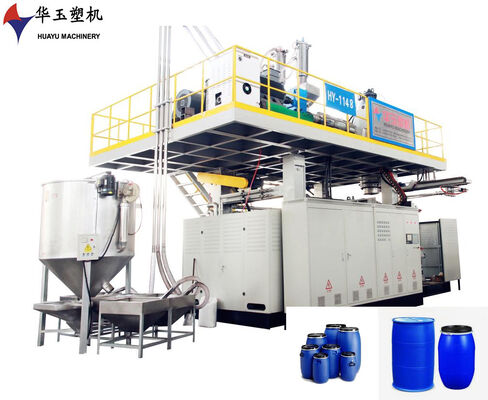

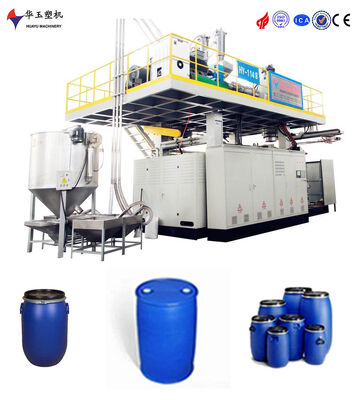

Precision Engineered Double L Ring Drum Blow Molding System with 220L Capacity and 25pcs/h Productivity
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM-220L1layers |
| Minimum Order Quantity | 1 SET |
| Price | 240000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | T/T,L/C |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Capacity Range | 220L,1layers | Total Weight | 24T |
|---|---|---|---|
| Voltage | Pending | Total Power | 260kw |
| Average Power | 190kw | Machine Dimension (L*W*H) | 7*6*5 |
| Productivity | 25pcs/h | Screw Diameter | 150mm, |
| Accumulator Capacity | 20kg | Max. Mould Size | 1200*1500mm(W*H) |
| Air Consumption | 1.5m3/min | Die Diameter | Max 350mm |
| Highlight | 220L Capacity Double L Ring Drum Blow Molding System,25pcs/h Productivity IBC Tank Blow Molding Machine,Precision Engineered Blow Molding Machine |
||
Product Description
Premium Double L Ring Drum Blow Molding System
Our precision-engineered dual-ring drum blow molding machine delivers exceptional structural stability for consistent, reliable molding results across all production runs. Equipped with advanced forming technology, it provides superior barrel durability, ensuring robust final products capable of handling diverse application scenarios.
Key Features & Benefits
User-Friendly Operation: Straightforward controls and easy maintenance minimize downtime while enhancing work efficiency
Precision Quality Control: Exact control over product quality and surface finish ensures every barrel meets high industry standards
Flexible Adaptability: Versatile manufacturing support for different production requirements and material specifications
Reliable Performance: Built for durability and consistent output during long-term continuous operation
Optimized Workflow: Efficient production design promotes maximum throughput and productivity
Corrosion Resistance: Robust construction enables safe handling of various materials and chemicals
Ergonomic Safety: Operational safety features create a secure working environment for personnel
Sustainable Manufacturing: Eco-friendly operational features align with modern industrial development trends
Technical Specifications
Hydraulic System
| Main Oil Tank Capacity | 890L | Servo motor, less energy consumption, high efficiency, low noise |
| Main Oil Pump | Gear Pump 160CC | |
| Main Oil Pump Motor | 37kw | |
| Servo Oil Tank Capacity | 200L | |
| Servo Oil Pump Model | Plunger Pump 22 | |
| Servo Oil Pump Motor | 7.5kw |
Electronic System
| Main Operation Panel | Touch Screen 9" | |
| Control System | PLC | |
| Thickness Control Points | 100 Points | |
| Temperature Control | PLC Module |
