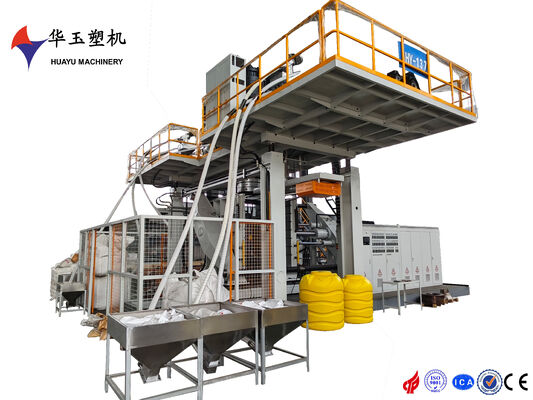

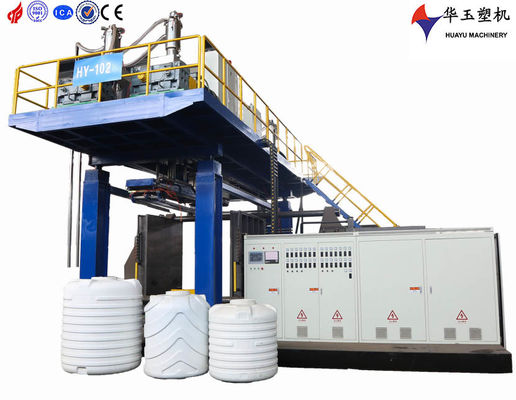

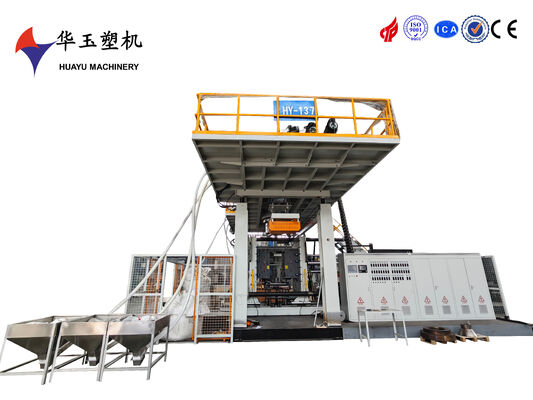

2200L 6-Layer Water Bucket Blow Molding System for High-Speed Continuous Production
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM-8.2200L -6layers |
| Minimum Order Quantity | 1 SET |
| Price | 280000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | L/C,T/T |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | Pending | Total Power | 550kw |
|---|---|---|---|
| Average Power | 320kw | Machine Dimension (L*W*H) | 8.5*9.5*7 |
| Productivity | 10-24pcs/h | Screw Diameter | 90mm |
| Screw L/D Ratio | 28 | Accumulator Capacity | 60kg |
| Max. Mould Size | 1600*2000mm(W*H) | Maximum Air Pressure | 0.8Mpa |
| Air Consumption | 2.3m3/min | ||
| Highlight | 6-layer structure Water Bucket Blow Molding System,2200L capacity Water Tank Blow Moulding Machine,High-speed continuous production Blow Molding Machine |
||
Product Description
Efficiency Redefined: 6-Layer 2200L Water Bucket Blow Molding System
Key Advantages
- 6-layer structure for superior durability and impact resistance
- Strong barrier performance against moisture and contaminants
- High-speed continuous production for large-scale orders
- Layered material allocation reduces production costs
- Flexible customization for 2200L bucket specifications
Hydraulic System Specifications
| Main Oil Tank Capacity | 1200L | Servo motor, less energy consumption, high efficiency, low noise |
| Main Oil Pump | Gear Pump 160CC | |
| Main Oil Pump Motor | 55kW | |
| Servo Oil Tank Capacity | 200L | |
| Servo Oil Pump Model | Plunger Pump 22 | |
| Servo Oil Pump Motor | 7.5kW |
Electronic Control System
| Main Operation Panel | Touch Screen 9" | |
| Control System | PLC | |
| Thickness Control Points | 100 Points | |
| Temperature Control | PLC Module |
