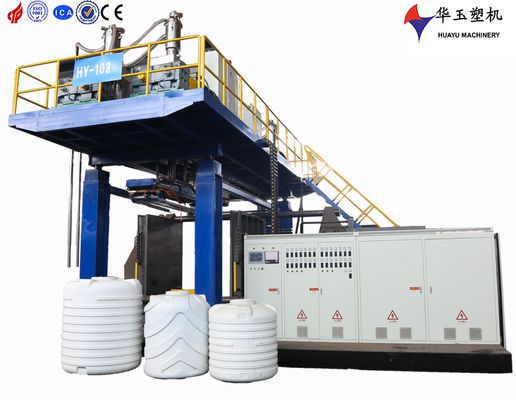

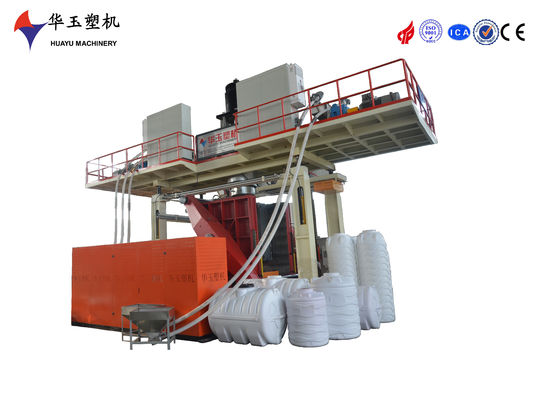

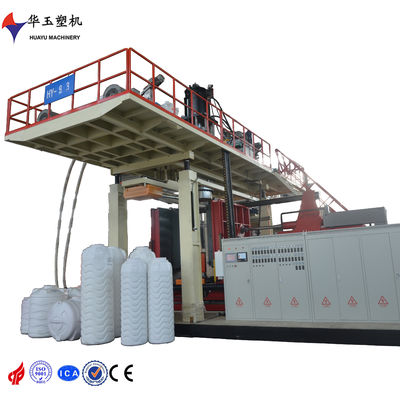

10-Layer 2000L Water Tank Blow Moulding Machine with Intelligent System for High-Volume Production
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM-2000L -10layers |
| Minimum Order Quantity | 1 SET |
| Price | 340000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | T/T,L/C |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | Pending | Total Power | 570kw |
|---|---|---|---|
| Average Power | 320kw | Machine Dimension (L*W*H) | 12.6*11*7.6 |
| Productivity | 10-24pcs/h | Screw Diameter | 100*6mm |
| Screw L/D Ratio | 28 | Accumulator Capacity | 60kg |
| Max. Mould Size | 1600*2000mm(W*H) | Maximum Air Pressure | 0.8Mpa |
| Air Consumption | 2.3m3/min | ||
| Highlight | 10-Layer Water Tank Blow Moulding Machine,2000L Blow Molding Solution,Intelligent System Blow Moulding Equipment |
||
Product Description
Advanced 10-Layer 2000L Water Container Blow Molding Solution
Key Advantages
- 10-layer structure enhances strength and impact resistance for large 2000L tanks
- Superior barrier effect protects against UV radiation and contaminants to maintain water quality
- Optimized design enables fast, stable high-volume production
- Intelligent system reduces energy consumption and supports recyclable materials for eco-friendly operation
- User-friendly controls and modular components simplify operation and maintenance
Hydraulic System Specifications
| Main Oil Tank Capacity | 1200L |
| Main Oil Pump | Gear Pump 160CC |
| Main Oil Pump Motor | 45kW |
| Servo Oil Tank Capacity | 200L |
| Servo Oil Pump Model | Plunger Pump 22 |
| Servo Oil Pump Motor | 7.5kW |
Servo motor technology provides energy efficiency, high performance, and low noise operation
Electronic Control System
| Main Operation Panel | 12" Touch Screen |
| Control System | PLC (Programmable Logic Controller) |
| Thickness Control Points | 200 Points |
| Temperature Control | PLC Module |
