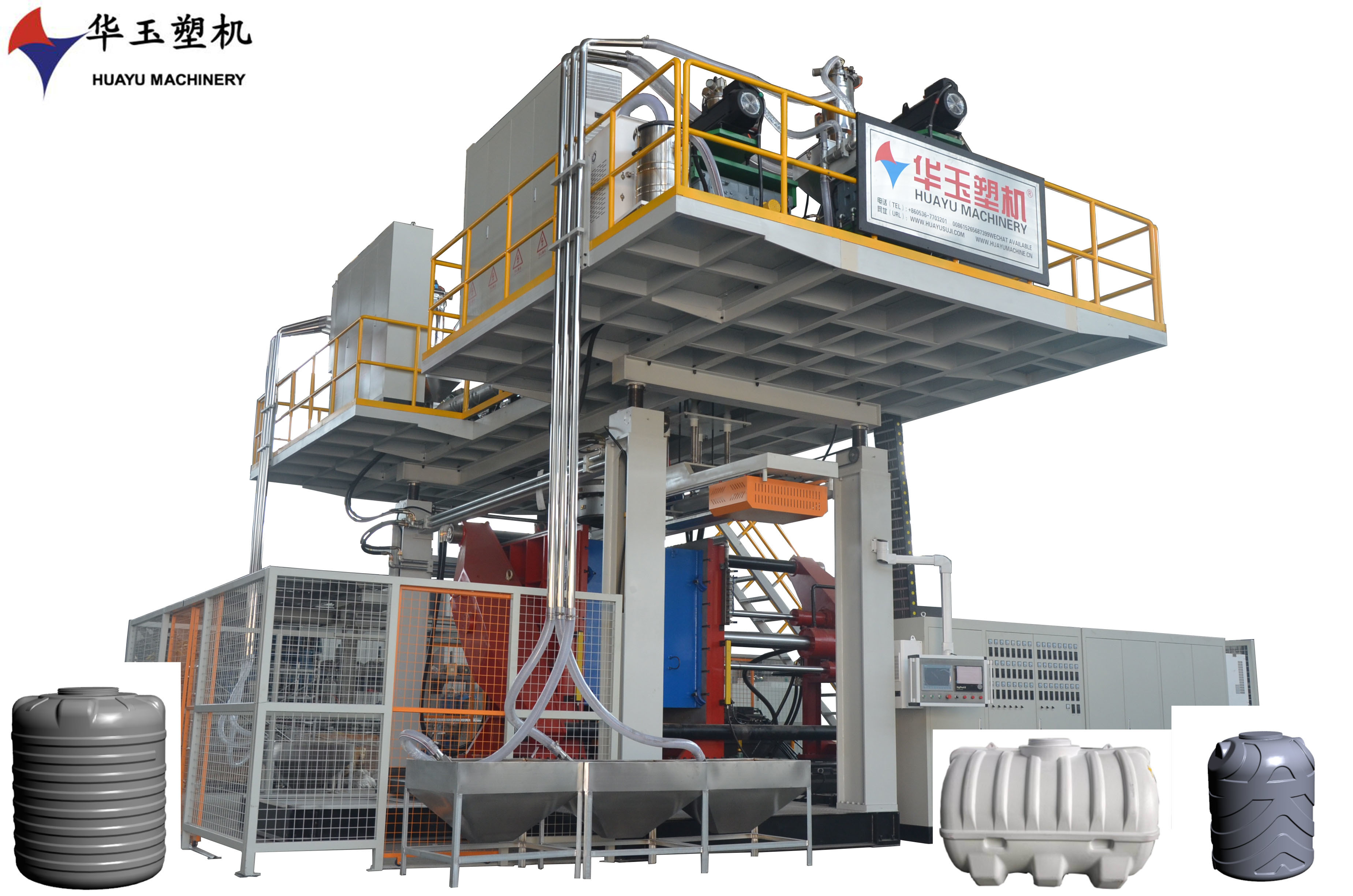

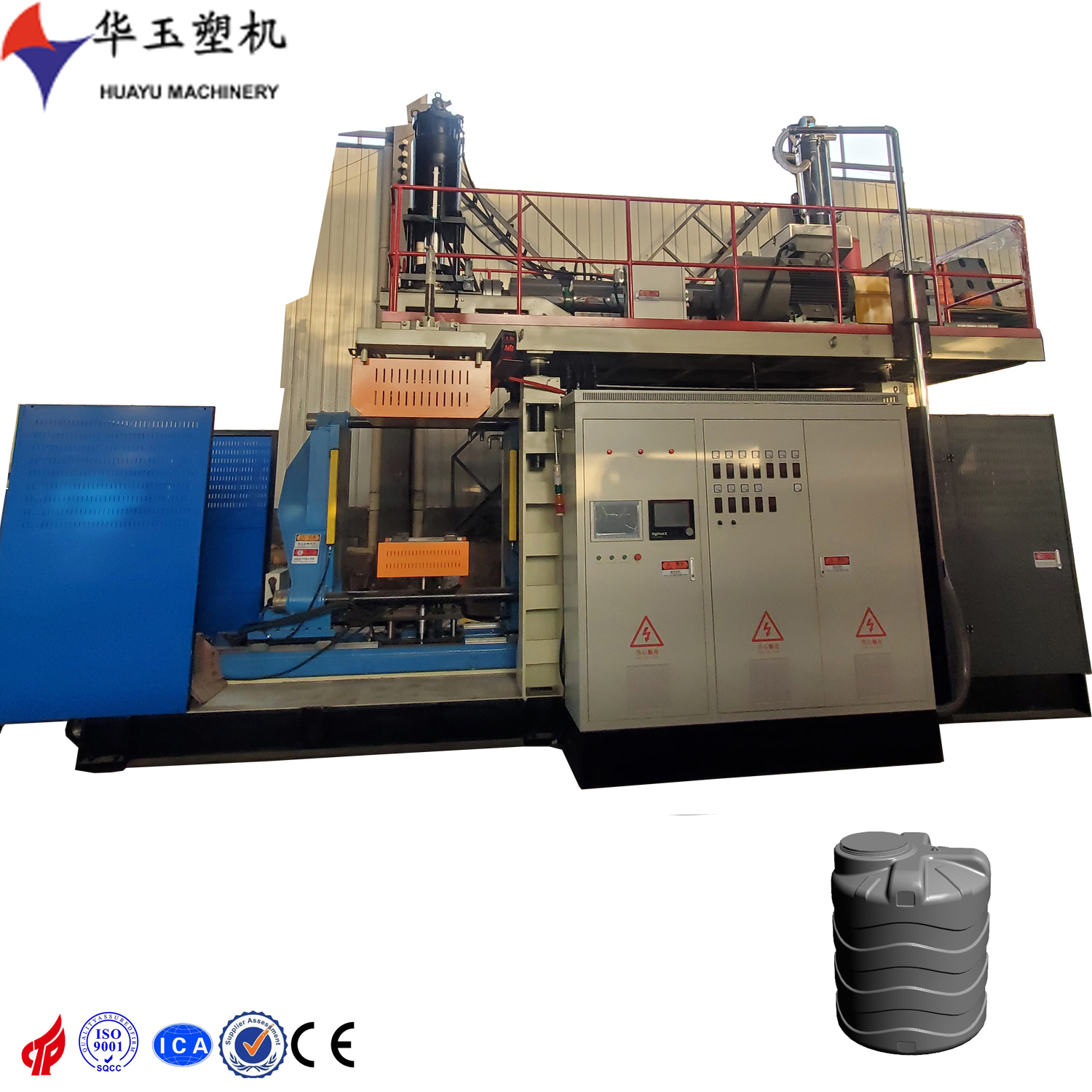

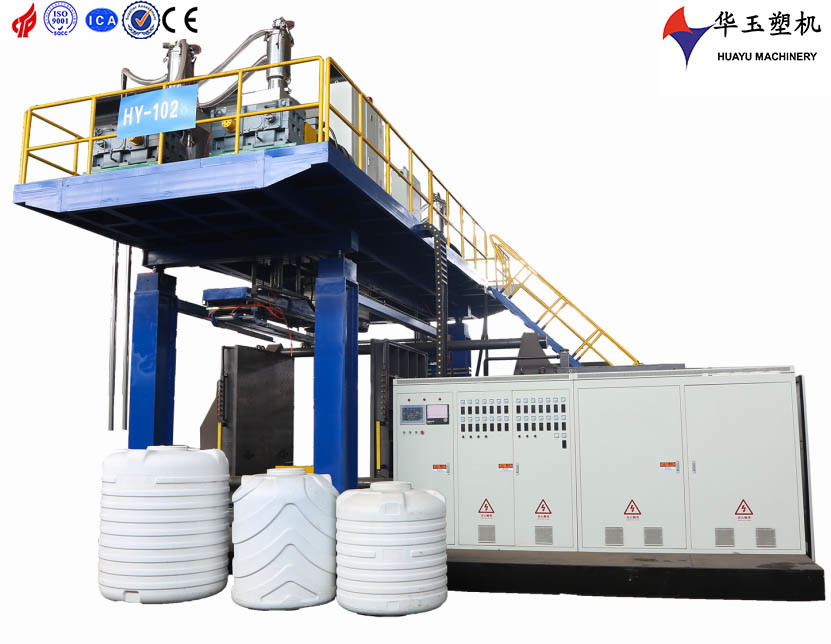

1000L 7-Layer Water Tank Blow Moulding Machine - High Efficiency Blow Molding Equipment
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM 1000L -7layers |
| Minimum Order Quantity | 1 SET |
| Price | 280000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | T/T,L/C |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | Pending | Total Power | 585kw |
|---|---|---|---|
| Average Power | 385kw | Machine Dimension (L*W*H) | 8*9*6.5 |
| Productivity | 16-25pcs/h | Screw Diameter | 90mm*7 |
| Screw L/D Ratio | 28：1 | Accumulator Capacity | 50kg |
| Max. Mould Size | 1400*1500mm(W*H) | Maximum Air Pressure | 0.8Mpa |
| Air Consumption | 1.5m3/min | ||
| Highlight | 7-Layer Structure Water Tank Blow Moulding Machine,1000L Capacity Blow Molding Equipment,High Efficiency Plastic Water Tank Making Machine |
||
Product Description
Top-Tier 1000L 7-Layer Water Container Blow Molding Equipment
Advanced blow molding machine engineered for high-volume production of durable 7-layer water containers with superior performance characteristics.
Key Advantages
- Maximum Strength & Durability: 7-layer structure creates impact-resistant tanks built for long-term performance
- Superior Water Quality: Specialized barrier layer prevents oxygen ingress, reducing algae growth and maintaining water freshness
- Long-Lasting Outdoor Performance: UV-protected outer layer prevents fading, cracking, and degradation from sunlight exposure
- Significant Material Cost Savings: Strategic material placement allows use of premium resins only where needed, with cost-effective or recycled materials in core layers
- High Efficiency & Low Unit Cost: Optimized for fast cycle times and high-volume production, reducing per-unit manufacturing costs
Hydraulic System Specifications
| Main Oil Tank Capacity | 890L |
| Main Oil Pump | Gear Pump 125CC |
| Main Oil Pump Motor | 37kW |
| Servo Oil Tank Capacity | 200L |
| Servo Oil Pump Model | Plunger Pump 22 |
| Servo Oil Pump Motor | 7.5kW |
Electronic Control System
| Main Operation Panel | 12" Touch Screen |
| Control System | PLC |
| Thickness Control Points | 200 Points |
| Temperature Control | PLC Module |
