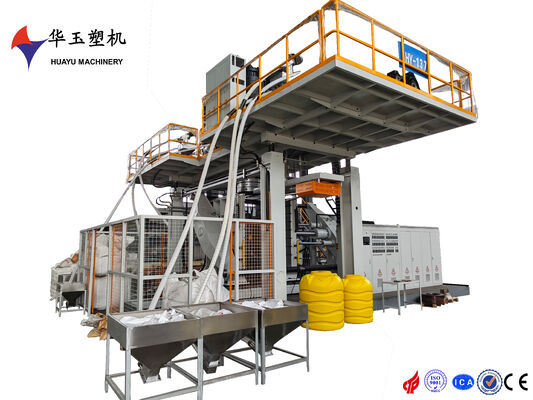

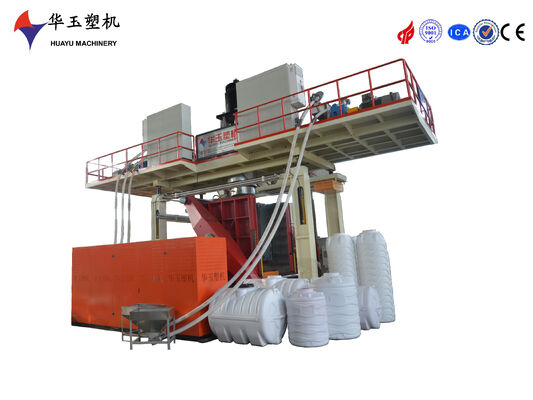

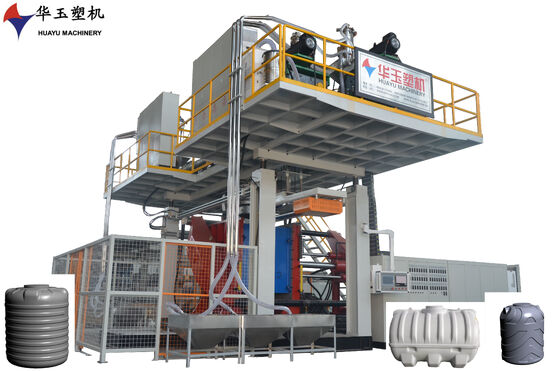

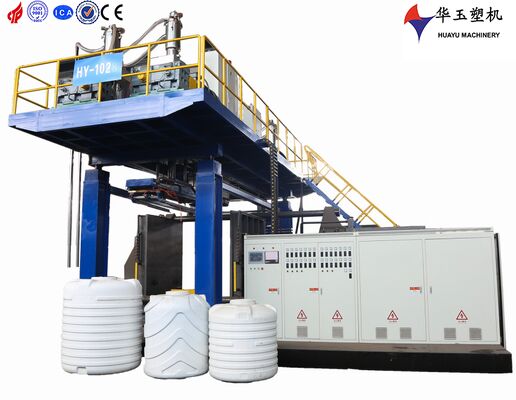

1500L Triple-Layer High Efficiency Water Tank Blow Moulding Machine for Plastic Drum Production
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM-1500L,3layers |
| Minimum Order Quantity | 1 SET |
| Price | 200000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | T/T,L/C |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | Pending | Total Power | 435kw |
|---|---|---|---|
| Average Power | 8.5*6*7.2 | Productivity | 10-24pcs/h |
| Screw Diameter | 110/120/110mm | Screw L/D Ratio | 28：1 |
| Accumulator Capacity | 60kg | Max. Mould Size | 1600*2000mm(W*H) |
| Maximum Air Pressure | 0.8Mpa | Air Consumption | 1.5m3/min |
| Highlight | 1500L Water Tank Blow Moulding Machine,Triple-Layer Blow Molding Equipment,High Efficiency Plastic Drum Blow Molding Machine |
||
Product Description
Cutting-Edge 3-Layer 1500L Water Bucket Blow Molding Equipment
Introducing our 1500L Triple-Layer Blow Molding Machine: a high-performance solution designed for the production of large, heavy-duty plastic drums and tanks. This machine is built to deliver exceptional quality, operational efficiency, and a rapid return on investment for your business.
Key Advantages
- Triple-Layer Technology: Produce drums with an inner layer for chemical resistance, a middle layer for cost-saving recycled material, and an outer layer for UV protection and durability. This versatility ensures a superior product at a competitive cost.
- High Efficiency & Output: Features a powerful extrusion system and a large accumulator head for stable, high-volume production. The advanced hydraulic clamping unit ensures consistent wall thickness and a fast cycle time, maximizing your daily output.
- User-Friendly & Reliable: Equipped with a state-of-the-art PLC control system with a large touchscreen, making operation and parameter setting simple and intuitive. Its heavy-duty steel frame and precision components guarantee long-term stability and low maintenance.
- Energy & Cost Savings: Incorporates energy-saving motors and optimized heating systems to significantly reduce operational costs. The ability to use recycled material in the middle layer further lowers your raw material expenses.
Applications
Ideal for manufacturing 1500L (and similar large-capacity) plastic drums and tanks for a wide range of industries, including chemicals, pharmaceuticals, food processing, and water treatment.
Choose our 1500L Triple-Layer Blow Molding Machine for a reliable, efficient, and profitable production solution.
Technical Specifications
Hydraulic System
| Specification | Value | Features |
|---|---|---|
| Main Oil Tank Capacity | 1200L | Servo motor, less energy consumption, high efficiency, low noise |
| Main Oil Pump | Gear Pump 160CC | |
| Main Oil Pump Motor | 57kW | |
| Servo Oil Tank Capacity | 200L | |
| Servo Oil Pump Model | Plunger Pump 22 | |
| Servo Oil Pump Motor | 7.5kW |
Electronic System
| Component | Specification |
|---|---|
| Main Operation Panel | Touch Screen 9" |
| Control System | PLC |
| Thickness Control Points | 100 Points |
| Temperature Control | PLC Module |
