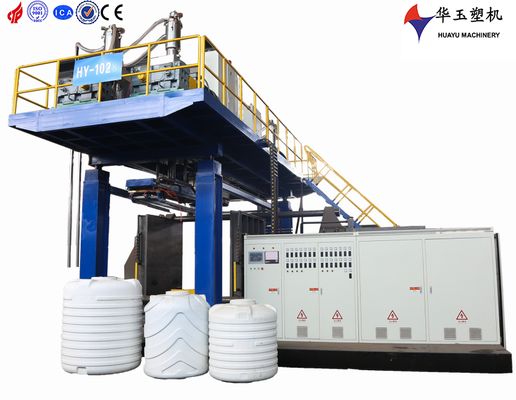

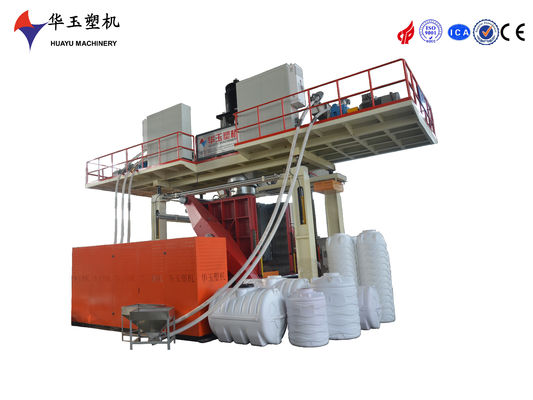

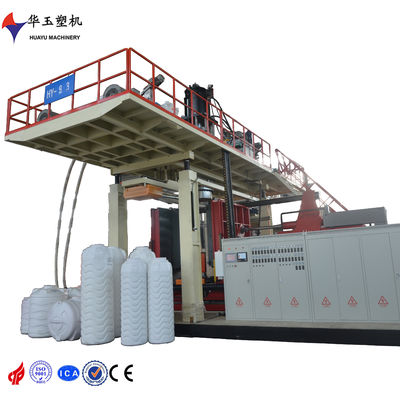

8-Layer 1000L Food-Grade Water Tank Blow Molding Machine for High-Quality Production
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM-200-1000L,8layers |
| Minimum Order Quantity | 1 SET |
| Price | 280000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | T/T,L/C |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | Pending | Total Power | 540kw |
|---|---|---|---|
| Average Power | 320kw | Machine Dimension (L*W*H) | 8*9*6.5 |
| Productivity | 16-25pcs/h | Screw Diameter | 80mm*8 |
| Screw L/D Ratio | 28：1 | Accumulator Capacity | 35kg |
| Max. Mould Size | 1200*1500mm(W*H) | Maximum Air Pressure | 0.8Mpa |
| Air Consumption | 1.5m3/min | ||
| Highlight | 8-Layer Blow Molding Machine,1000L Water Tank Blow Moulding Machine,Food-Grade Blow Molding Machine |
||
Product Description
Complete Solution: 8-Layer Blow Molding Machine for 1000L Food-Grade Water Tanks
Key Features & Benefits
- Superior Product Quality: 8-layer structure ensures exceptional strength, chemical resistance, and insulation properties
- Operational Efficiency: User-friendly PLC control system enables precise operations and high production speed
- Cost-Effective Production: Optimized design saves energy and raw materials, maximizing your profit margin
- Built to Last: Crafted with high-quality components for long-term reliability and minimal maintenance
Hydraulic System Specifications
| Main Oil Tank Capacity | 890L | Servo motor, less energy consumption, high efficiency, low noise |
| Main Oil Pump | Gear Pump 125CC | |
| Main Oil Pump Motor | 37kW | |
| Servo Oil Tank Capacity | 200L | |
| Servo Oil Pump Model | Plunger Pump 22 | |
| Servo Oil Pump Motor | 7.5kW |
Electronic Control System
| Main Operation Panel | Touch Screen 9" |
| Control System | PLC |
| Thickness Control Points | 100 Points |
| Temperature Control | PLC Module |
