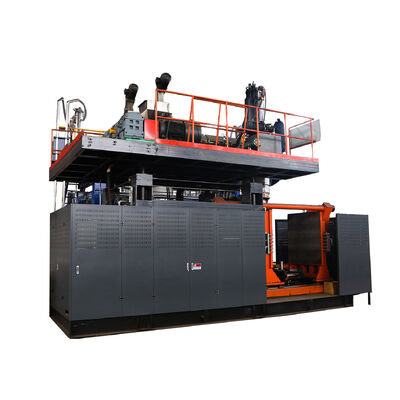

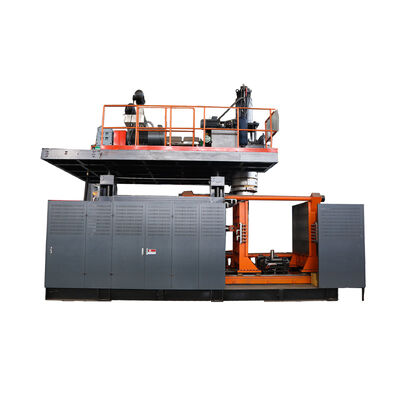

250L Capacity Double-Ring Drum Blow Molding Machine with 30:1 L/D Ratio and Energy-Saving Operation
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM-250L-1 |
| Minimum Order Quantity | 1Set |
| Price | 260000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | T/T,L/C |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Screw Diameter | 150mm | L/D | 30:1 |
|---|---|---|---|
| Screw Material | 38CrMoAlA，Nitriding | Output | 30PCS/h |
| Air Supply | 0.8×6（MPa × Cubic Meter Per Minute） | Total Power | 324.5KW |
| Average Energy Consumption(AEC) | About 180kw Per Hour | ||
| Highlight | 250L Capacity Drum Blow Molding Machine,30:1 L/D Ratio Blow Molding Apparatus,Energy-Saving Operation Double-Ring Drum Blow Molder |
||
Product Description

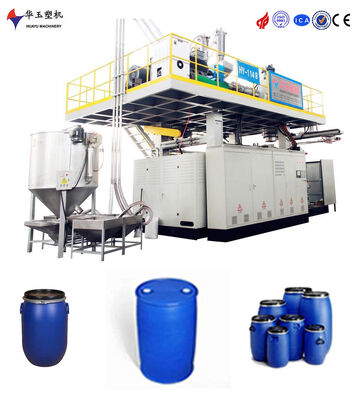

250L 1-Layer Double-Ring Drum Blow Molding Machine
Key Advantages
- High Production Efficiency: Fast cycle times and continuous molding capability deliver 50+ 250L double-ring drums per hour, significantly boosting production output for large-scale manufacturing.
- Precision Molding Performance: Advanced servo control system and precise die head design ensure uniform wall thickness and consistent double-ring structural dimensions, meeting strict industrial standards.
- Energy-Saving Operation: Energy-efficient motor and heat recovery technology reduce power consumption by 15-20% compared to traditional machines, cutting long-term operational costs.
- User-Friendly Operation: Intuitive touch screen HMI with pre-set molding parameters minimizes training time and simplifies daily production adjustments.
- Durable Equipment Build: High-strength steel frame and wear-resistant components provide a service life of over 10 years with minimal maintenance.
- Versatile Compatibility: Optimized for 250L 1-layer double-ring drums but adjustable for different plastic materials (HDPE/PP) and similar-sized barrel products.
- Stable Double-Ring Forming: Dedicated mold and air pressure control unit ensure rings have strong load-bearing capacity without deformation, meeting stacking and transportation requirements.
- Low Material Waste: Precision material feeding system and optimized parison control reduce plastic scrap rate to less than 3%, lowering raw material costs.
Energy Configuration Specifications
| Component | Specification |
|---|---|
| Extruder Driving Power | 160kw Siemens Independent Air Cooler |
| Hydraulic Main System Motor Power | 35.6KW Huichuan Servo Motor |
| Wall Thickness Control Motor Power | 7.5 KW |
| Heating Power of Extrusion System | 7 pcs * 7KW/pc |
| Power of Die Heating | 7 pcs * 6KW/pc |
| Air Supply | 0.8*6 (MPa * Cubic meter per minute) |
| Cooling Water Consumption | 0.3*20°*30 (MPa * degree * Cubic meter per hour) |
| Total Power | 324.5KW |
| Average Energy Consumption (AEC) | Approximately 180kw per hour |

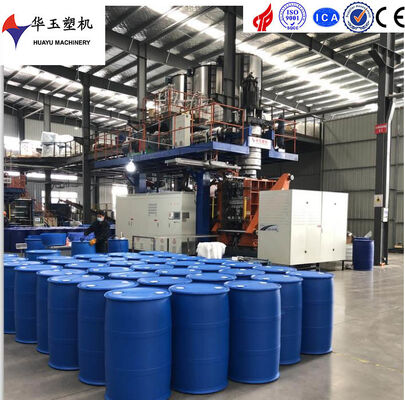

This industrial blow molding machine is engineered for high-volume production of 250L double-ring drums, combining precision engineering with energy-efficient operation for optimal manufacturing performance.
