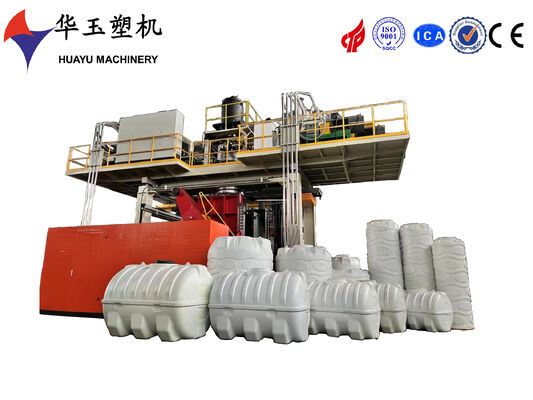

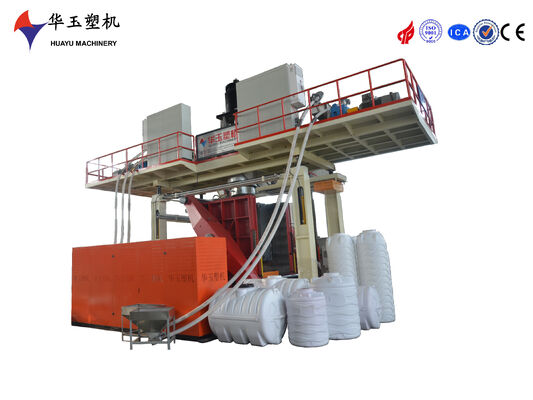

3000L Tri-Layer Drum Blow Molding Machine with Precision Wall Thickness and High-Capacity Output
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM-500-3000L,3layers |
| Minimum Order Quantity | 1 SET |
| Price | 340000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | T/T,L/C |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | Pending | Total Power | 430kw |
|---|---|---|---|
| Average Power | 290kw | Machine Dimension (L*W*H) | 9.5*6.5*8.2 |
| Productivity | 8-20pcs/h | Screw Diameter | 130/130/mm |
| Screw L/D Ratio | 28：1 | Accumulator Capacity | 90kg |
| Max. Mould Size | 1800*2200mm(W*H) | Maximum Air Pressure | 0.8Mpa |
| Air Consumption | 3m3/min | ||
| Highlight | Tri-Layer Construction Drum Blow Molding Machine,Precision Wall Thickness 3000L Drum Blow Molding Machine,High-Capacity 3000L Drum Blow Molding Machine |
||
Product Description
3000L Tri-Layer Drum Blow Molding: Where Precision Meets Capacity
Why Choose Our 3000L Tri-Layer Drum Blow Molding Machine?
Advanced Tri-Layer Construction
Engineered for superior durability and structural integrity, ensuring each drum meets the highest standards of quality and performance.
Precision & Efficiency
Delivers consistent wall thickness and precise dimensions, minimizing material waste while maximizing production output.
Uncompromising Durability
Designed to withstand rigorous industrial use, providing long-lasting reliability and reducing maintenance costs over time.
User-Centric Design
Features intuitive controls and a streamlined interface, making operation efficient and accessible for all skill levels.
Industry-Leading Technology
Incorporates cutting-edge extrusion and blow molding techniques to deliver exceptional results in every drum produced.
Eco-Friendly Operation
Optimizes energy usage and reduces environmental impact, aligning with sustainable manufacturing practices.
Versatile Applications
Ideal for producing a wide range of 3000L drums, including those for chemicals, liquids, and bulk storage solutions.
Global Support Network
Backed by a dedicated team of experts providing comprehensive service, training, and technical assistance worldwide.
Hydraulic System Specifications
| Main Oil Tank Capacity | 1500L |
| Main Oil Pump | Gear Pump 185CC |
| Main Oil Pump Motor | 57kW |
| Servo Oil Tank Capacity | 200L |
| Servo Oil Pump Model | Plunger Pump 22 |
| Servo Oil Pump Motor | 7.5kW |
Electronic System Specifications
| Main Operation Panel | Touch Screen 12" |
| Control System | PLC |
| Thickness Control Points | 100 Points |
| Temperature Control | PLC Module |
