Automatic Large Extrusion IBC Tank Making Machine Drums For Chemical Industry

Place of Origin CHINA
Brand Name HUAYU
Certification CE SGS
Model Number HYBM1000-3 IBC
Minimum Order Quantity 1SET
Price USD 200000-450000USD
Packaging Details export package
Delivery Time 4MONTHS
Supply Ability 40SETS PER YEAR

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application IBC Automation Automatic
Capacity 1000L Control System PLC
Material Plastic Mould Material Aluminum
Power Supply 380V/50Hz Warranty 1 Year
Highlight

Chemical Industry ibc tank making machine

,

Automatic Extrusion Ibc Machine

,

1000L Ibc Machine

Leave a Message
Product Description

Machine Specification

Layers 1layer 2layers 2+1layers 3layers 6layers
Capacity rang 1000L 1000L 1000L 1000L 1000L
Machine dimension 9.4*5*6.5M 9.4*5.8*6.8M 9.4*5.8*6.8M 11*5.8*7M 11*5.8*7M
Average 160KW 190KW 200KW 230KW 280KW
Total power 306KW 426KW 440KW 493KW 572KW
Accumulator capacity 30KG 30KG 30KG 30KG 30KG
Extruder motor 160KW 110KW*2 110KW*2/7.5KW 110*1/90*2 110/90*2/15*3
Screw diameter 150MM 120MM 120MM*2/45MM*1 120MM*1/110MM*2 120MM/110MM*2/55MM*3
Screw L/D ratio 30:1 30:1 30:1 30:1 30:1
Plasticizing capacity 400KG/H 500KG/H 500KG/H 700KG/H 550KG/H
Platen size 1700*1800MM 1700*1800MM 1700*1800MM 1700*1800MM 1700*1800MM
Platen distance 1100-2500MM 1100-2500MM 1100-2500MM 1100-2500MM 1100-2500MM
Clamping force 1800KN 1800KN 1800KN 1800KN 1800KN
Servo motor 48KW 48KW 48KW 48KW 48KW







Finished Product

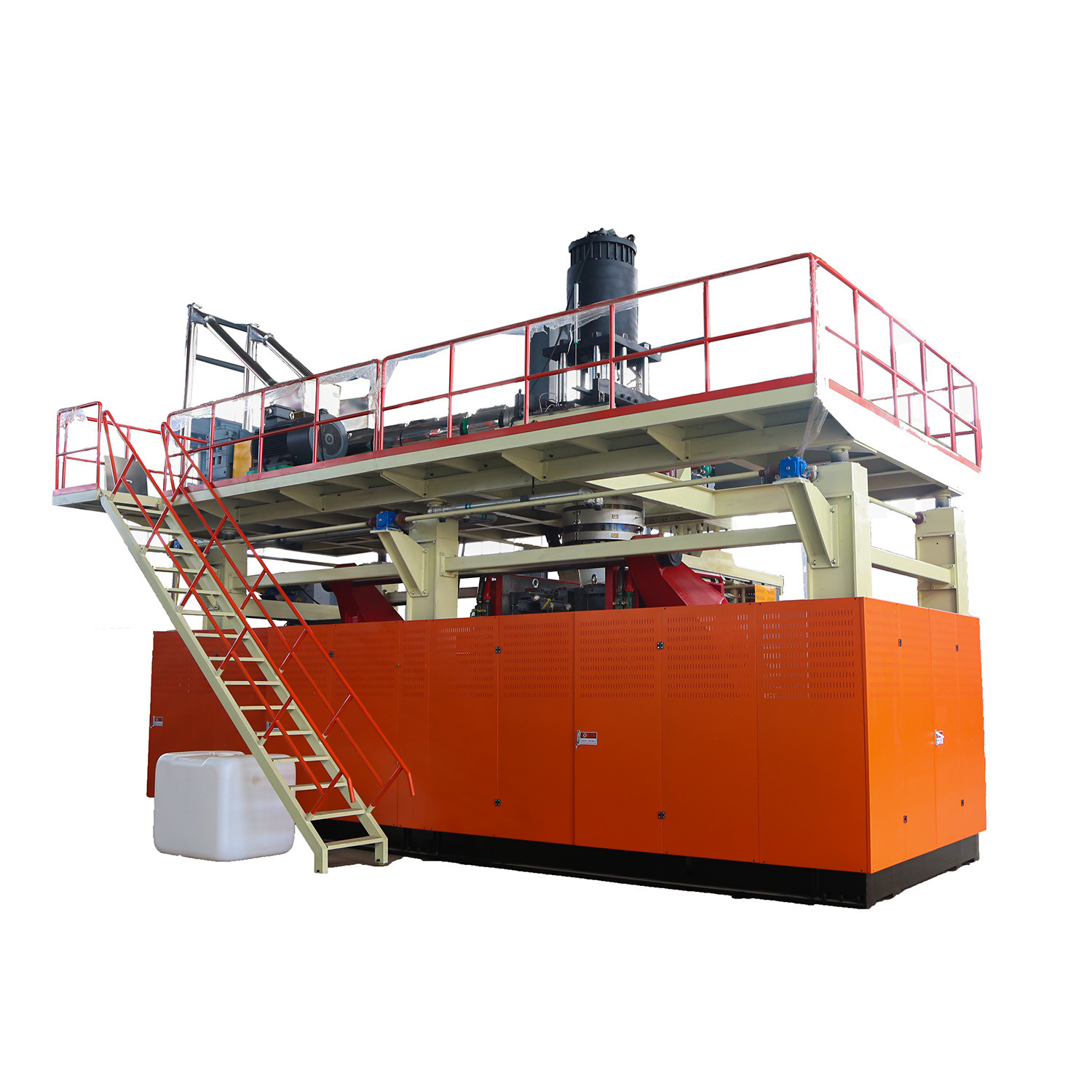

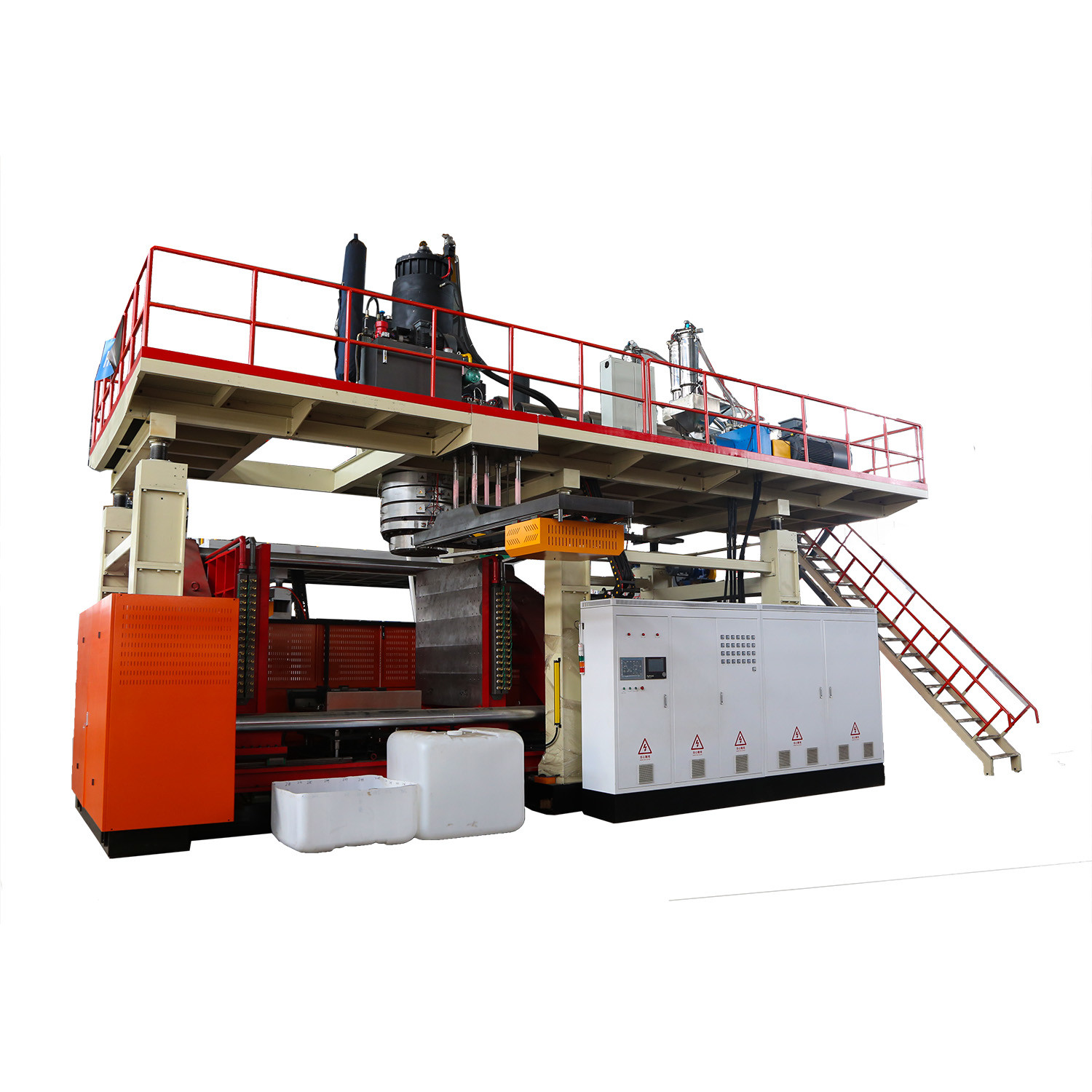

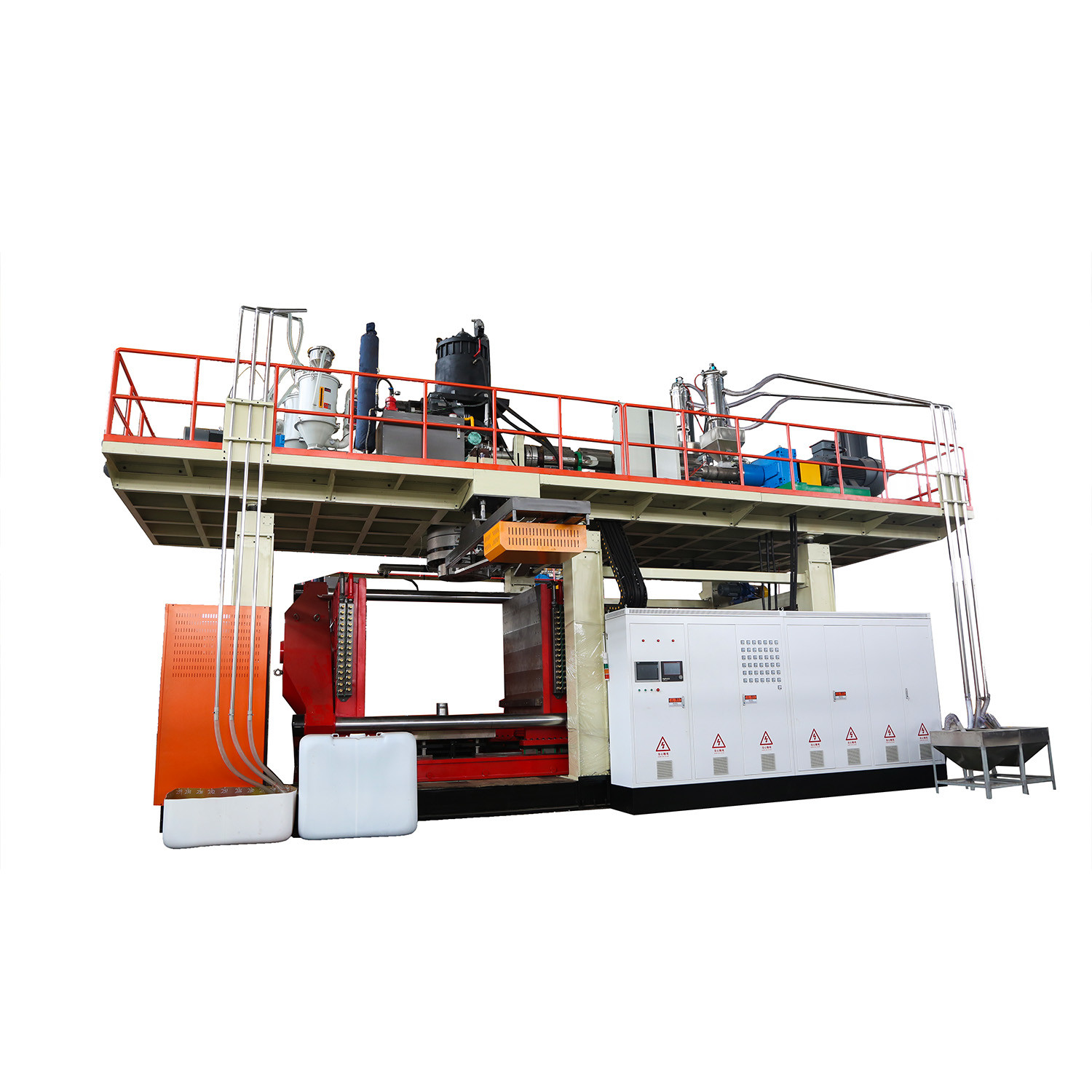

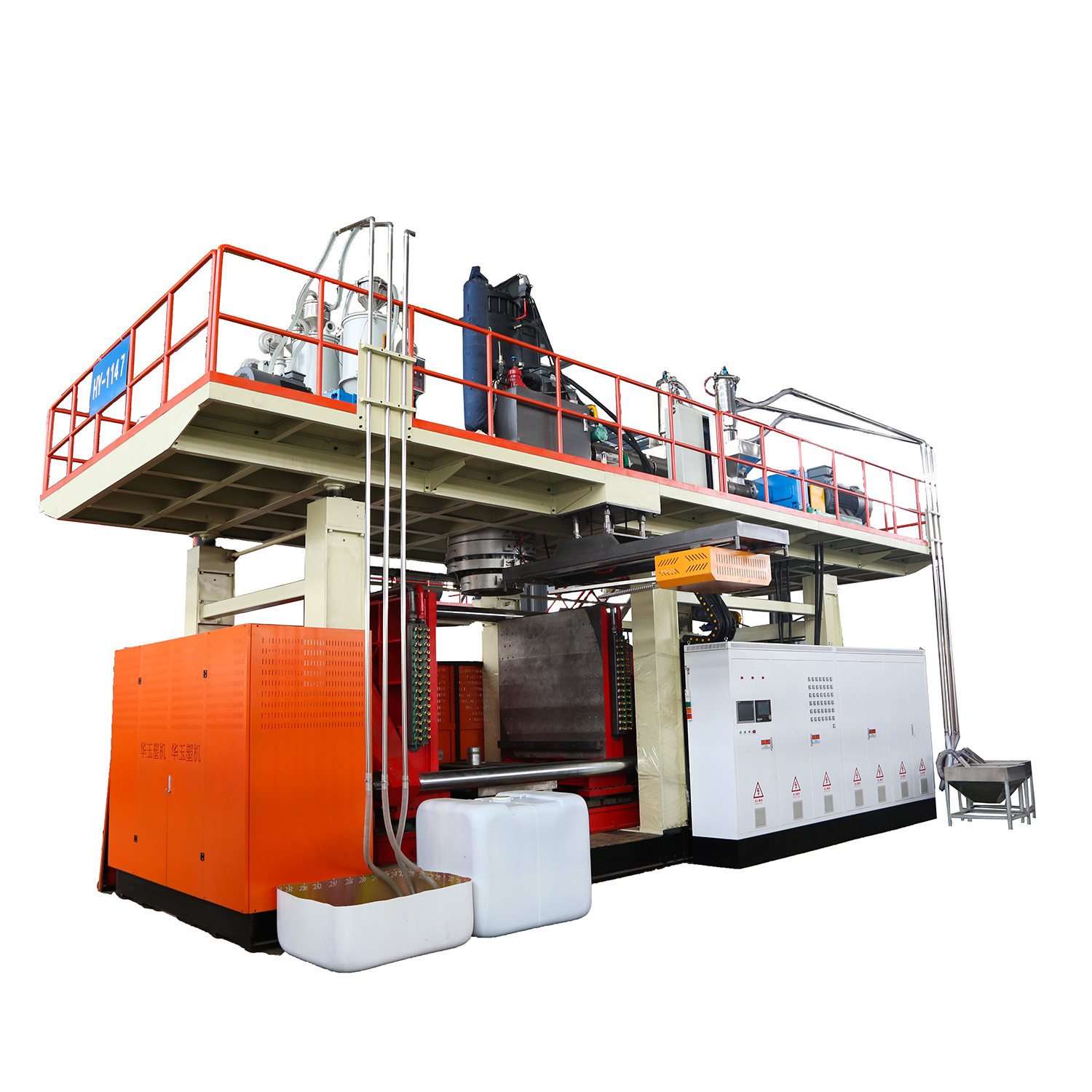

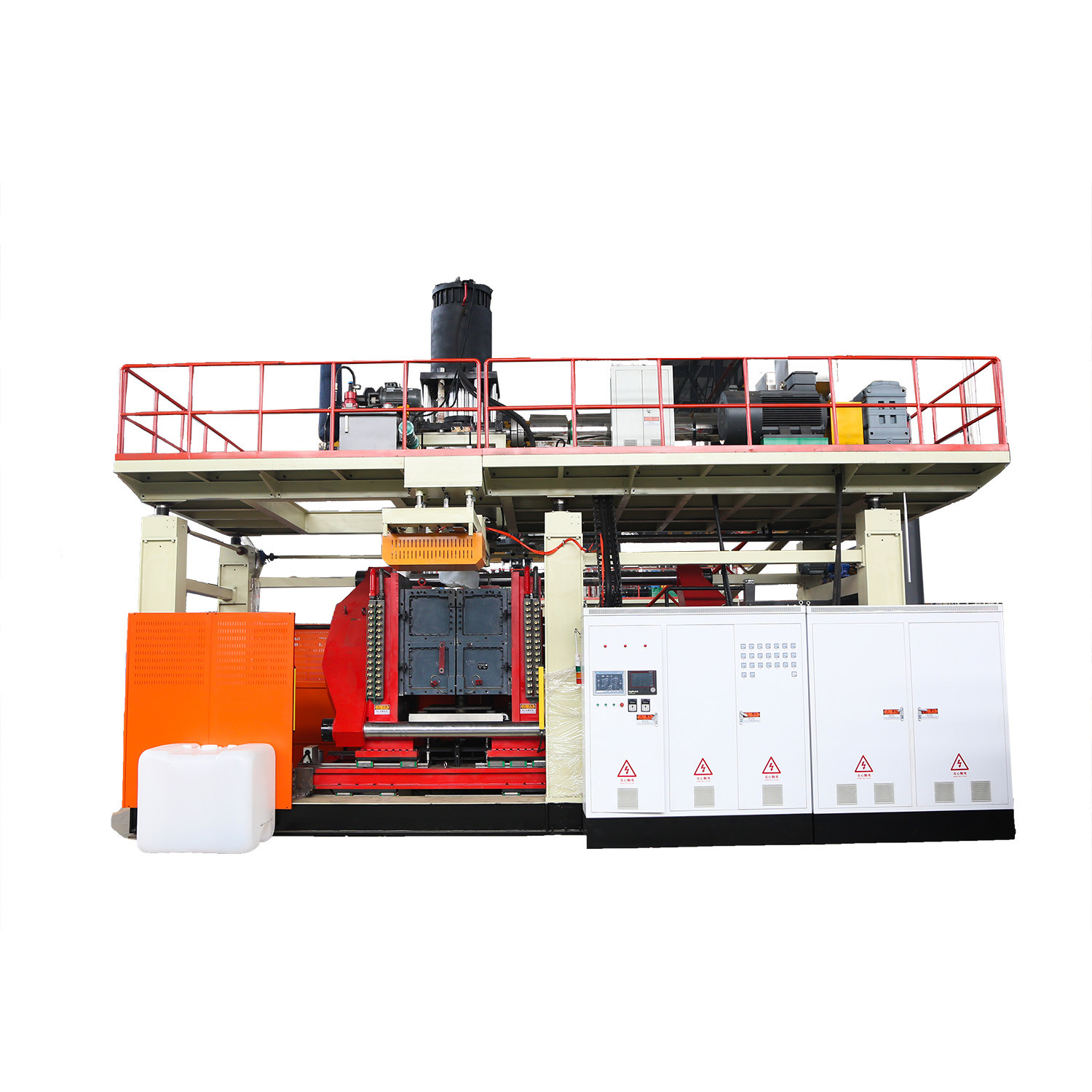

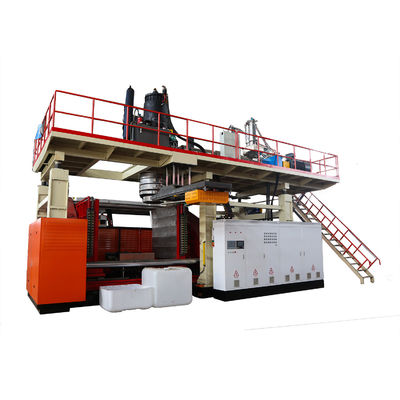

Automatic Large Extrusion IBC Tank Making Machine Drums For Chemical Industry 0Automatic Large Extrusion IBC Tank Making Machine Drums For Chemical Industry 1Automatic Large Extrusion IBC Tank Making Machine Drums For Chemical Industry 2Automatic Large Extrusion IBC Tank Making Machine Drums For Chemical Industry 3Automatic Large Extrusion IBC Tank Making Machine Drums For Chemical Industry 4Automatic Large Extrusion IBC Tank Making Machine Drums For Chemical Industry 5

















1.Gearbox:plastic machine specially use harded gear ,long life and low noise .




2.screw barrel:special designed screw can ensure the material plasticizing uniform and efficient,

with heating and cooling device, ensure the stability of the plastic melting temperature.



3.diehead:designed by ourselves and get the patent



4.clamping system:smooth running, no noise; the clamping force is big



5.blow unit:with pre-blowing function, air blowing pin independent design which relize convenient replacement and multiply usage



6.main Hydraulic station:Servo motor, less energy consumption, high efficiency, low noise



7.servo station:thickness controller, response speed, control accuracy.thickness change curve is shown, adjust simple and intuitive.



8.frame of machine:Frame lifting can make the mould installation easily , The highest degree of avoid rough edge



9.heating system:Heating automatic control temperature;Electrical system is equipped with overload, overheating protection function

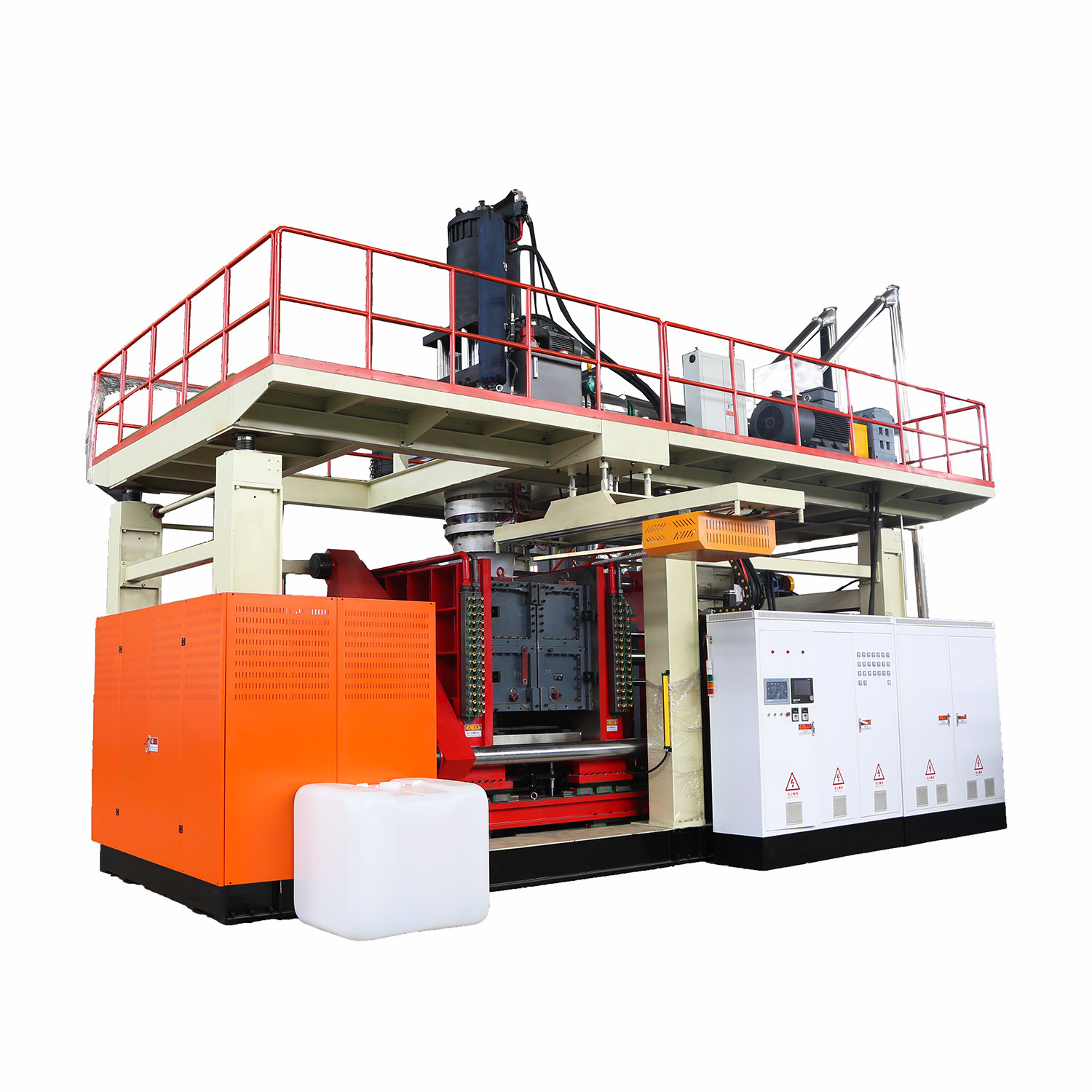

Automatic Large Extrusion IBC Tank Making Machine Drums For Chemical Industry 6Automatic Large Extrusion IBC Tank Making Machine Drums For Chemical Industry 7



Automatic Large Extrusion IBC Tank Making Machine Drums For Chemical Industry 8
