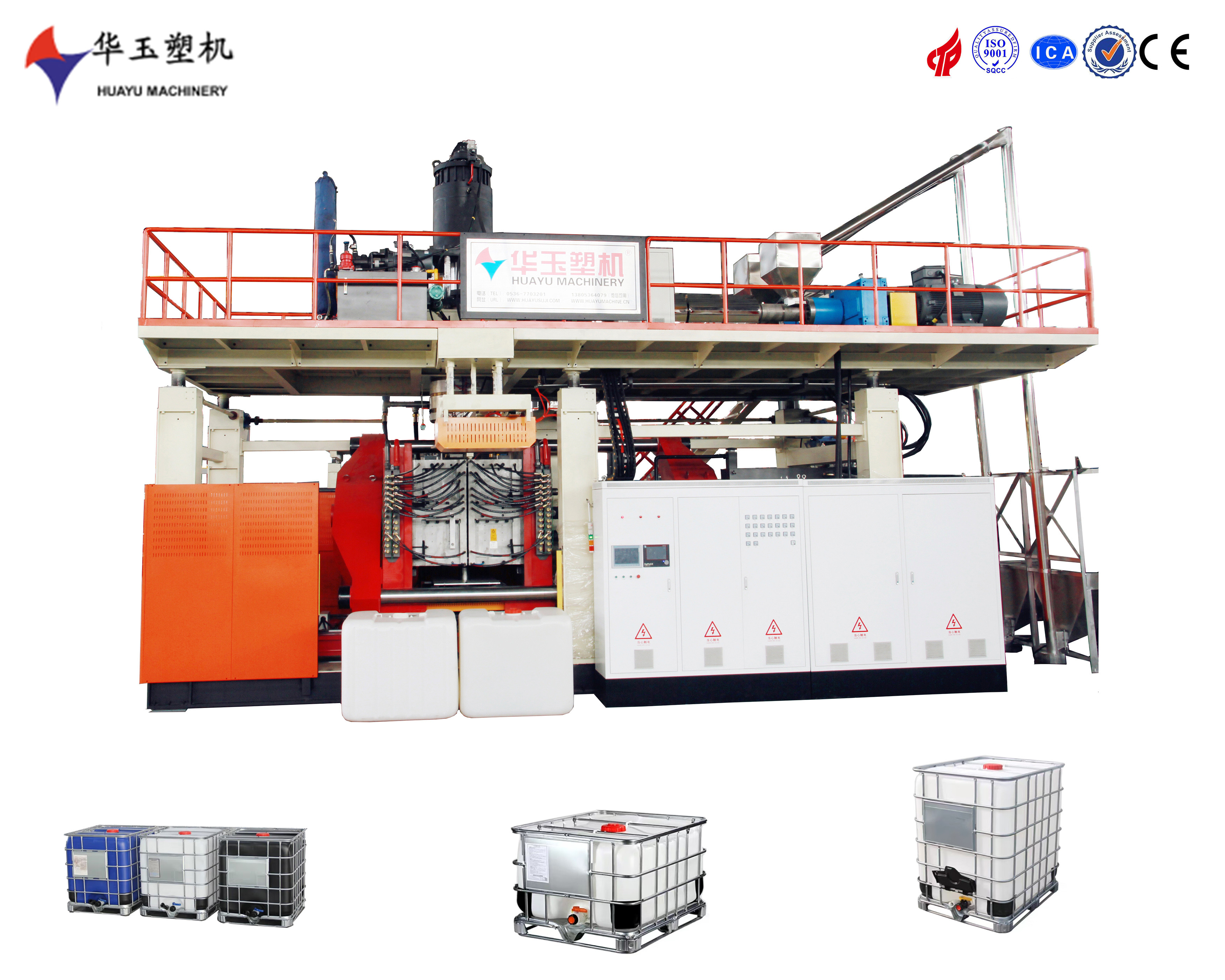

650kg/H Large IBC Tank Blow Molding Machine Energy Conservation
| Place of Origin | CHINA |
|---|---|
| Brand Name | Huayu |
| Certification | CE,TUV,ISO9001，SGS |
| Model Number | HYBM-IBC |
| Minimum Order Quantity | 1 SET |
| Price | negotiation |
| Packaging Details | The machine will be disassembled into many parts for container transportation. |
| Delivery Time | 4months |
| Payment Terms | L/C, T/T |
| Supply Ability | 40sets/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty Of Core Components | 1 YEAR | Place Of Origin | Shandong, China |
|---|---|---|---|
| Key Selling Points | High Productivity | Voltage | Customerized |
| Screw L/D Ratio | 30 | ||
| Highlight | 650kg/h IBC Tank Blow Molding Machine,Large IBC Tank Blow Molding Machine,Large blow molding machine |
||
Product Description
Key attributes
Industry-specific attributes
Clamping Force (kN)
1800
Output (kg/h)
650 kg/h
Other attributes
Condition
New
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Warranty of core components
1 Year
Core Components
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Plastic Processed
HDPE, PE
Place of Origin
Shandong, China
Automation
Automatic
Power (kW)
390
Weight (T)
66
Key Selling Points
High Productivity
Warranty
1 Year
Applicable Industries
Manufacturing Plant, Other
Showroom Location
None
Application
plastic product
Brand Name
HUAYU
Year
2024
Voltage
customerized
Dimension(L*W*H)
customerized
Hollow part volume
customerized
PLC Brand
Siemens
Screw L/D Ratio
30
Screw diameter (mm)
110 mm
No. of Screw Heating Zone
6
Screw Heating Power(kW)
60 kW
Extruder Motor Power(kW)
110 kW
Mold Platen Size(Width)(mm)
1800 mm
Mold Platen Size(Height)(mm)
1600 mm
Air Pressure(MPa)
0.8 MPa
Air Comsumption(m³/min)
2.4 m³/min
Die Head Heating Power(kW)
70 kW
Accumulator Capacity(L)
70 L
After-sales Service Provided
Overseas Service Provided
Blow Moulding Type
Extrusion Blow Moulding
Type
Extrusion Blow Molding Equipment
Marketing Type
Hot Product 2022
Packaging and delivery
Packaging Details
container transport to Qingdao port ,China. container size and quality according to the machine and other goods.Impotant parts in box.antirust encapsulation for easy rust parts.Other parts fixed in container.
Supply Ability
Supply Ability
5 Set/Sets per Month
