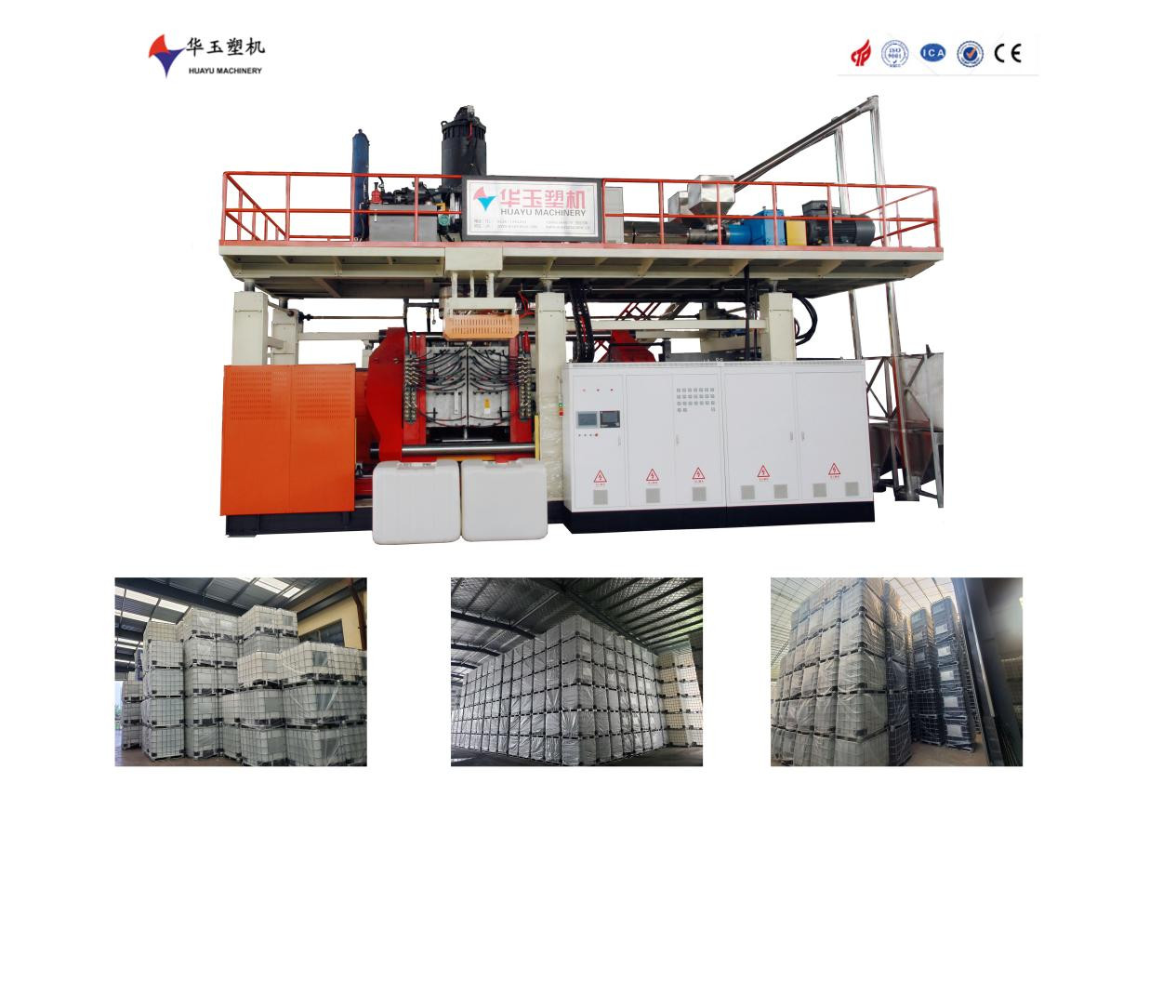

Fully Automatic IBC Tank Blow Molding Machine Steel Cage Auto Making Line

  • Fully Automatic IBC Tank Blow Molding Machine Steel Cage Auto Making Line
  • Fully Automatic IBC Tank Blow Molding Machine Steel Cage Auto Making Line
  • Fully Automatic IBC Tank Blow Molding Machine Steel Cage Auto Making Line
  • Fully Automatic IBC Tank Blow Molding Machine Steel Cage Auto Making Line
  • Fully Automatic IBC Tank Blow Molding Machine Steel Cage Auto Making Line
Place of Origin CHINA
Brand Name HUAYU
Certification CE ,SGS
Model Number HY1000L-IBC
Minimum Order Quantity 1SET
Price Negotiate
Packaging Details EXPORT PACKAGED
Delivery Time 4MONTHS
Payment Terms L/C, T/T
Supply Ability 40SETS PER YEAR
Product Details
Clamping Force 1800（Kn） Weight 69Ton
Warranty 1 Year Plastic Processed HDPE、PE
After-sales Service Provided Engineers Service Overseas Certification CE Certificated,SGS;BV
Color Customied PLC Brand Siemens
Highlight

Fully Automatic IBC Tank Blow Molding Machine

,

HDPE IBC Tank Blow Molding Machine

,

PE automatic blow
Leave a Message
Product Description
Automated blow molding equipment for IBC tote tanks and steel cage auto making line
Our business holds a large number of imported medium and large-sized computer numerically controlled devices. Relying on our robust technical strength and the adoption of cutting-edge foreign technologies and management concepts, our organization has created a diverse range of fully automated blow molding machines, plastic pipe production lines, and packaging machines. Our offerings primarily encompass 2000L super-large blow molding machines, 200-1000L fully automated blow molding machines, 20-200L fully automated blow molding machines, and 1-20L fully automated blow molding machines. Our plastic hollow machines are capable of producing various plastic packaging barrels ranging from 1 liter to 2000 liters, specifically excelling in the production of one-ton square chemical barrels, 220L double chemical barrels, and plastic trays for forklifts, along with three-layer hollow automobile tanks. Moreover, we can also tailor various oddly-shaped hollow products.

 Condition

new



Video outgoing-inspection
Provided



Machinery Test Report
Provided



Warranty of core components
1 Year



Core Components
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump



Plastic Processed
HDPE, PE



Place of Origin
Shandong, China



Automation
Automatic



Power (kW)
390



Weight (T)
69



Key Selling Points
High Productivity



Warranty
1 Year



Applicable Industries
Manufacturing Plant, Other



Showroom Location
United States, Brazil, India, Chile



Application
chemical industry package



Brand Name
huayu



Year
2023



Voltage
customized



Dimension(L*W*H)
customized



Hollow part volume
customized



PLC Brand
Siemens



Screw L/D Ratio
30



Screw diameter (mm)
120 mm



No. of Screw Heating Zone
6



Screw Heating Power(kW)
72 kW



Extruder Motor Power(kW)
110 kW



Mold Platen Size(Width)(mm)
1500 mm



Mold Platen Size(Height)(mm)
1600 mm



Air Pressure(MPa)
0.8 MPa



Air Comsumption(m³/min)
1.5 m³/min



Die Head Heating Power(kW)
70 kW



Accumulator Capacity(L)
60 L



After Warranty Service
Life



Blow Moulding Type
Extrusion Blow Moulding



Type
Extrusion Blow Molding Equipment



Marketing Type
Ordinary Product



Product name
Automatic Blowing Molding Machine



Range
IBC tank



CONTROLLER
PLC+Touch Screen



Layer
1~10 Layers



Parison Control
MOOG 200point



Material
HDPE

Fully Automatic IBC Tank Blow Molding Machine Steel Cage Auto Making Line 0Fully Automatic IBC Tank Blow Molding Machine Steel Cage Auto Making Line 1Fully Automatic IBC Tank Blow Molding Machine Steel Cage Auto Making Line 2Fully Automatic IBC Tank Blow Molding Machine Steel Cage Auto Making Line 3Fully Automatic IBC Tank Blow Molding Machine Steel Cage Auto Making Line 4Fully Automatic IBC Tank Blow Molding Machine Steel Cage Auto Making Line 5Fully Automatic IBC Tank Blow Molding Machine Steel Cage Auto Making Line 6Fully Automatic IBC Tank Blow Molding Machine Steel Cage Auto Making Line 7
