1000 Liter 1 Layer Automatic Blow Molding Machine BV SGS Certified

  • 1000 Liter 1 Layer Automatic Blow Molding Machine BV SGS Certified
  • 1000 Liter 1 Layer Automatic Blow Molding Machine BV SGS Certified
  • 1000 Liter 1 Layer Automatic Blow Molding Machine BV SGS Certified
  • 1000 Liter 1 Layer Automatic Blow Molding Machine BV SGS Certified
  • 1000 Liter 1 Layer Automatic Blow Molding Machine BV SGS Certified
  • 1000 Liter 1 Layer Automatic Blow Molding Machine BV SGS Certified
Place of Origin CHINA
Brand Name HUAYU
Certification CE ,SGS
Model Number HYBM-1001
Minimum Order Quantity 1SET
Price Negotiate
Packaging Details EXPORT PACKAGED
Delivery Time 4MONTHS
Payment Terms L/C, T/T
Supply Ability 40SETS PER YEAR

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Clamping Force 1800（Kn） Weight 39Ton
Warranty 1 Year Plastic Processed HDPE、PE
After-sales Service Provided Engineers Service Overseas Certification CE Certificated,SGS;BV
Color Customied PLC Brand Siemens
Highlight

1000 Liter automatic blow molding machine

,

1 Layer automatic blow molding machine

,

SGS blow molding water tank
Leave a Message
Product Description

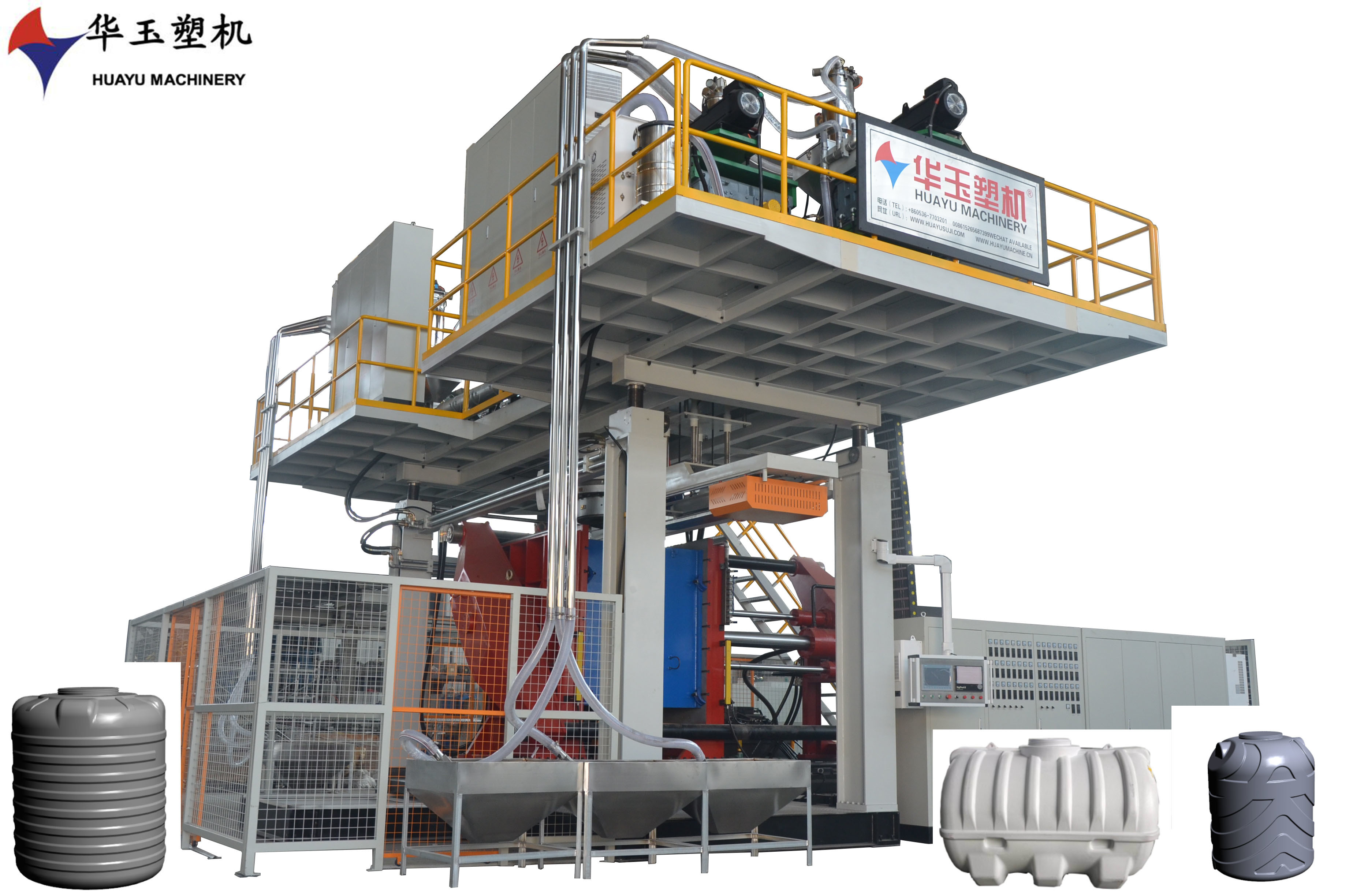

The 1000L three-layer water bucket blow molding machine is a state-of-the-art piece of equipment designed to meet the high demands of the industry.

This machine features advanced technology and precise engineering, ensuring excellent performance and reliability. It is capable of producing high-quality 1000L three-layer water buckets with consistent dimensions and superior strength.

 Condition

new



Video outgoing-inspection
Provided



Machinery Test Report
Provided



Warranty of core components
1 Year



Core Components
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump



Plastic Processed
HDPE, PE



Place of Origin
Shandong, China



Automation
Automatic



Power (kW)
390



Weight (T)
69



Key Selling Points
High Productivity



Warranty
1 Year



Applicable Industries
Manufacturing Plant, Other



Showroom Location
United States, Brazil, India, Chile



Application
chemical industry package



Brand Name
huayu



Year
2023



Voltage
customized



Dimension(L*W*H)
customized



Hollow part volume
customized



PLC Brand
Siemens



Screw L/D Ratio
30



Screw diameter (mm)
120 mm



No. of Screw Heating Zone
6



Screw Heating Power(kW)
72 kW



Extruder Motor Power(kW)
110 kW



Mold Platen Size(Width)(mm)
1500 mm



Mold Platen Size(Height)(mm)
1600 mm



Air Pressure(MPa)
0.8 MPa



Air Comsumption(m³/min)
1.5 m³/min



Die Head Heating Power(kW)
70 kW



Accumulator Capacity(L)
60 L



After Warranty Service
Life



Blow Moulding Type
Extrusion Blow Moulding



Type
Extrusion Blow Molding Equipment



Marketing Type
Ordinary Product



Product name
Automatic Blowing Molding Machine



Range
IBC tank



CONTROLLER
PLC+Touch Screen



Layer
3 Layers



Parison Control
MOOG 200point



Material
HDPE

1000 Liter 1 Layer Automatic Blow Molding Machine BV SGS Certified 01000 Liter 1 Layer Automatic Blow Molding Machine BV SGS Certified 11000 Liter 1 Layer Automatic Blow Molding Machine BV SGS Certified 2
