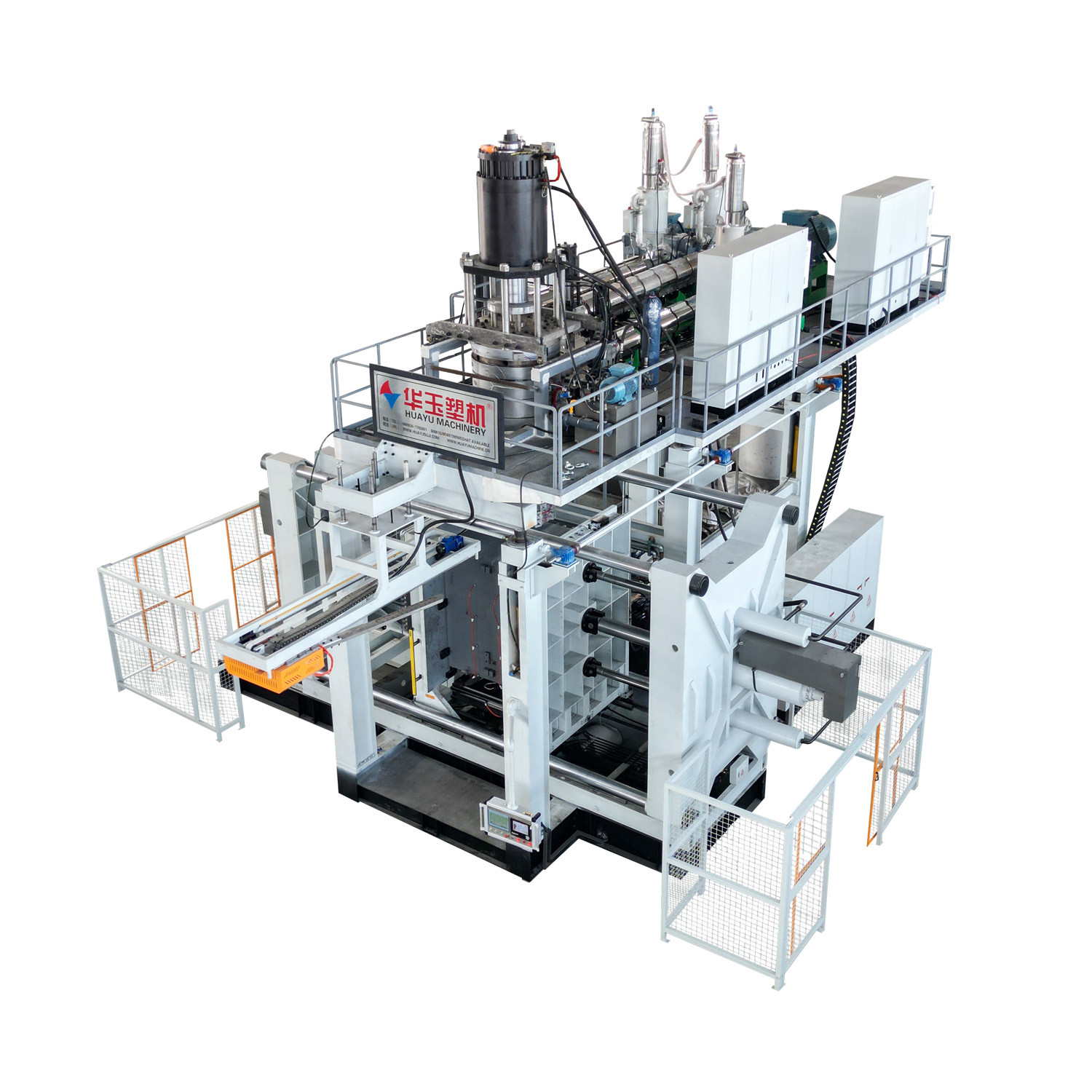

5000L 3 Layers Water Tank Blow Moulding Machine With Hydraulic Servo Driver System
| Place of Origin | Weifang |
|---|---|
| Brand Name | Huayu |
| Certification | CE |
| Model Number | 5003 |
| Minimum Order Quantity | 1 set |
| Price | 420,000 |
| Packaging Details | The machine will be disassembled into many parts for container transportation. |
| Delivery Time | 4 months |
| Payment Terms | L/C,T/T |
| Supply Ability | 4 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Plc Brand | Siemens | Power Supply | 380V/50Hz |
|---|---|---|---|
| Layer | 3 Layers | Blow Moulding Type | Extrusion Blow Moulding |
| Servo Motor | 11kw | Platen Distance | 1600---4000mm |
| Parison | MOOG 200point | Air Consumption | 3m3/min |
| Min. Product Size | 1800*2500mm(W*H) | Range | 1000L---5000L, 3 Layers |
| Plc | Siemens | Average Power Consumption | 420kw |
| Air Seat Stroke | 400mm | Warranty | 1 Year |
| Automation Level | Fully Automatic | ||
| Highlight | 5000L Water Tank Blow Moulding Machine,3 Layers Blow Moulding Machine,Servo Driver Blow Moulding Machine |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Huayu 5000L Three Layers Blow Moulding Machine With Good Quality
Weifang Huayu Plastic Machinery Co.,Ltd was founded in 2002. We have many patens and certifications.We will continue to devote
ourselves to research and development in the field of blow moulding machine, and strive to build an international brand in the blow
moulding industry!
5000L 3 layers blow moulding machine adopts to vaccum loaded. Automated vacuum feeding operation improves production
efficiency , is fast enough, and saves a lot of manpower and material resources. Sealed transportation to prevent pollution. Strong
adaptability ,suitable for various materials and conveying distances. High safety, reduced material loss, easy maintenance and
upkeep. Improved the quality of the working environmrnt, energy conservation and environmrntal protection.
| Clamping System | ||
| platen size | 2400*2500*70mm(W*H*T) | smooth running, no noise; the clamping force is big |
| clamping cylinder | 350+200*2 | |
| clamping cylinder stroke | 2200mm | |
| clamping force | 3000KN | |
| distance between platens | 1600-4000mm | |
| max. mould size | 1800*2500mm(W*H) | |
| blowing and cooling system | ||
| stretching stroke | according to products | |
| blow pin up/down stroke | 600mm | |
| air seat stroke | 400mm | |
| maximum air pressure | 0.8Mpa | |
| air consumption | 3m3/min | |
| Cooling method | Circulating water | |
| Water pressure | 0.3MPa | |
| Cooling water consumption | 3m3/h | |
