2000L 10 Layers Water Tank Blow Moulding Machine With Induction Heater And Air Condition
| Place of Origin | Weifang |
|---|---|
| Brand Name | Huayu |
| Certification | CE,ISO9001 |
| Model Number | 2000L-10 |
| Minimum Order Quantity | 1 set |
| Packaging Details | The machine will be disassembled into many parts for container transportation. |
| Delivery Time | 5 months |
| Payment Terms | L/C,T/T |
| Supply Ability | 4 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Extrusion System | 10 Layers | Max. Product Size | 1600*2000mm(W*H) |
|---|---|---|---|
| Cooling System | Water Cooling | Bucket Thickness | Not Very Thick |
| Feeder Type | Vacuum Feeder | Clamping Force | 1800KN |
| Applicable Material | HDPE | Platen Size | 1800*2000*70mm(W*H*T) |
| Total Weight | 80T | Goods Capacity | 500---2000L , 10 Layers |
| Layer | 10 Layers | Productivity | 10-24pcs/h |
| Capacity | 2000 Liters | Range | Water Tank |
| Extrudor Motor | 55kw*6 | ||
| Highlight | Induction Heater Blow Moulding Machine,10 Layers Blow Moulding Machine,2000L Water Tank Blow Moulding Machine |
||
Product Description

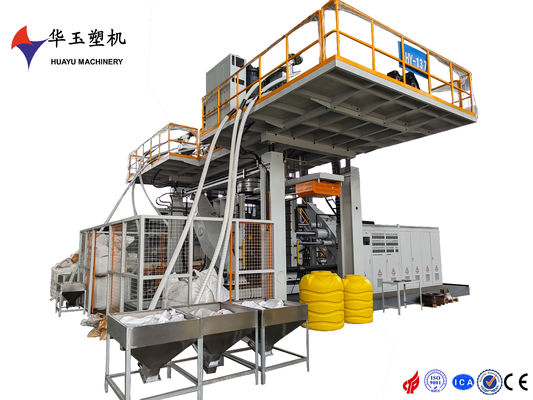

2000L 10 Layers Water Tank Blow Moulding Machine With Induction Heater And Air Condition
This is our 2000L 10 layers water tank blow moulding machine.The type of machine is very popilar among Indians.We have exported at least 10 sets of 2000L-10- layer machine to India this year.
We have a good pre-sales and after-sales team.Before the machine is shipped , the custom will come to test the machine first.Once the machine is deemed satisfactory, we will proceed with its delivery.
After the machine is shipped, if you have any questions ,feel free to contact us. We have a good after-sales team and technical personnel. Our technicians will also accompany the installation.The warranty period is 1 year.Any parts that break during the year can be replaced free to charge, as long as they are not damaged by human factors.
The following table is the configuration parameters of the 2000L 10-layer machine, which can be used for reference.
|
Basic Specification |
||
|
applicable material |
HDPE |
China·HUAYU |
|
capacity range |
500-2000L,10layers |
|
|
Voltage |
Pending |
|
|
total power |
570kw |
|
|
average power |
320kw |
|
|
Machine dimension (L*W*H) |
12.6*11*7.6 |
|
|
productivity |
10-24pcs/h |
|
|
Auto Feeder |
||
|
hopper material |
stainless steel |
Stable performance, easy maintenance |
|
feeding type |
vacuum loaded |
|
|
feeding motor |
2.2kw*6 |
|
|
Extrusion System |
||
|
Screw diameter |
100*6mm |
Nitrided 38CrMoAIA |
|
Screw L/D ratio |
28:1 |
special designed screw can ensure the material plasticizing uniform and efficient |
|
Extruder motor |
55kw*6 |
|
|
Reducer |
280*6 |
Best quality brand in china ,long life and low noise |
|
Screw heating power |
4kw*24 |
|
|
Plasticizing capacity |
600kg/h |
|
