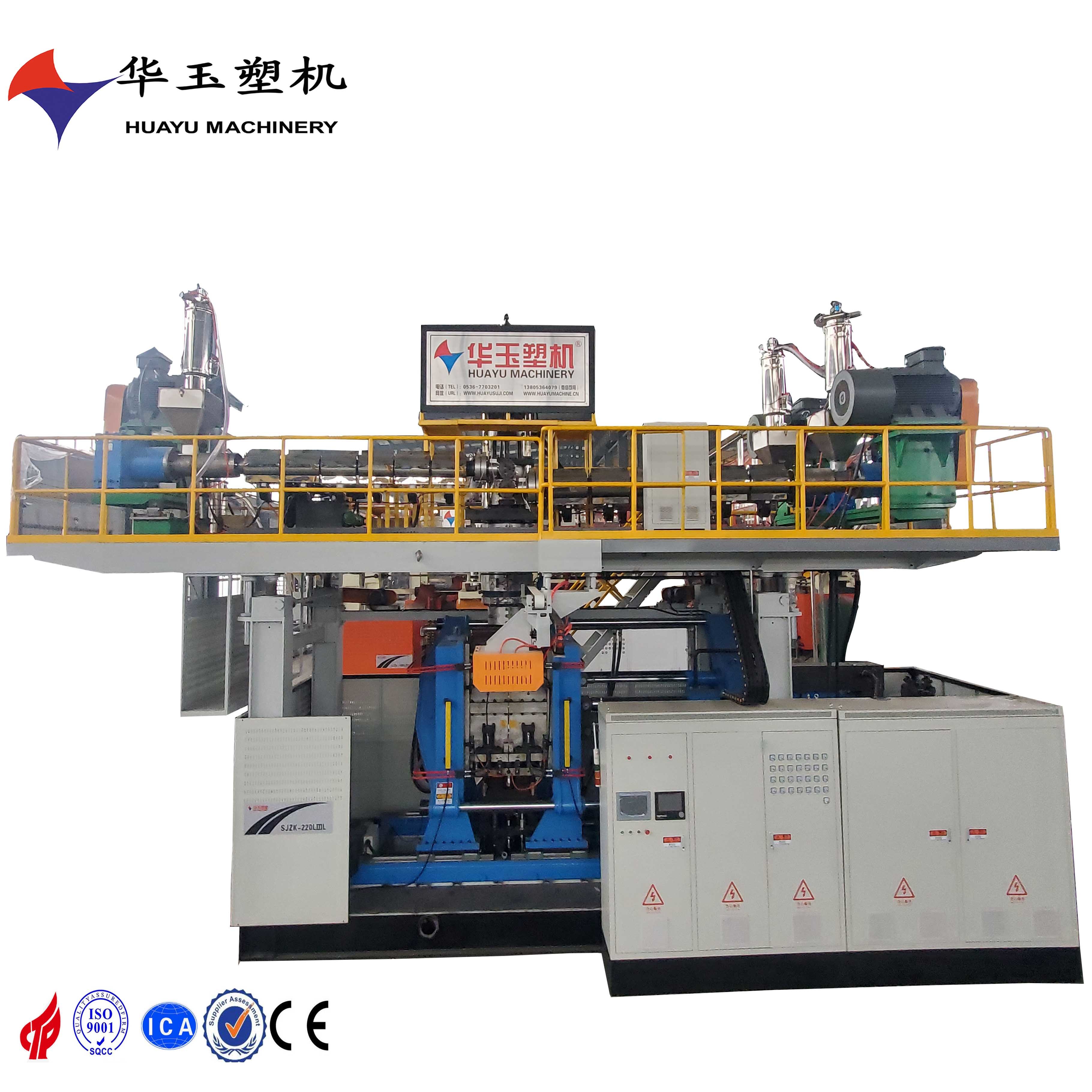

1200L 10-Layer Blow Moulding Machine for Agricultural Containers
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001, CE |
| Model Number | HY1200-10 |
| Minimum Order Quantity | 1 SET |
| Price | 300000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | T/T,L/C |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Screw Dia | 120mm*1 110mm*2 | Warranty | 1 Year |
|---|---|---|---|
| Average Power Consumption | 247kw | Tataol Power | 285 |
| Output | 20PCS/h | Average Power | 180kw |
| Bucket Thickness | Not Very Thick | Max. Mold Size | 1200x1200mm |
| Screw Material | 38CrMoAlA，Nitriding | Automation Level | Fully Automatic |
| Accumulator Capacity | 30KG | Machine Dimensions | 10*5.5*7m |
| Maximum Air Pressure | 0.8Mpa | Machine Type | High Speed Plastic Bottle Making Machine |
| Screw Diameter | 110mm | ||
| Highlight | 1200L blow moulding machine,10-layer Blow Moulding Machine,IBC tank blow molding equipment |
||
Product Description
The HUAYU1200L-10 Blow Moulding Machine is designed specifically for agricultural applications. It features advanced automation and energy-efficient technology, ensuring high precision and low operational costs, making it perfect for producing large plastic containers and drums for agricultural use.
|
die head |
||
|
Accumulator capacity |
35kg |
designed by ourselves and get the patent |
|
Die diameter |
According to products |
|
|
Die head heating power |
90kw |
|
|
Clamping System |
||
|
platen size |
1500*1600*60mm(W*H*T) |
smooth running, no noise; the clamping force is big |
|
clamping cylinder |
250 |
|
|
clamping cylinder stroke |
1500mm |
|
|
clamping force |
800KN |
|
|
distance between platens |
900-2400mm |
|
|
max. mould size |
1200*1500mm(W*H) |
|
|
blowing and cooling system |
||
|
stretching stroke |
according to products |
|
|
blow pin up/down stroke |
600mm |
|
|
air seat stroke |
400mm |
|
|
maximum air pressure |
0.8Mpa |
|
|
air consumption |
1.5m3/min |
|
|
Cooling method |
Circulating water |
|
|
Water pressure |
0.3MPa |
|
