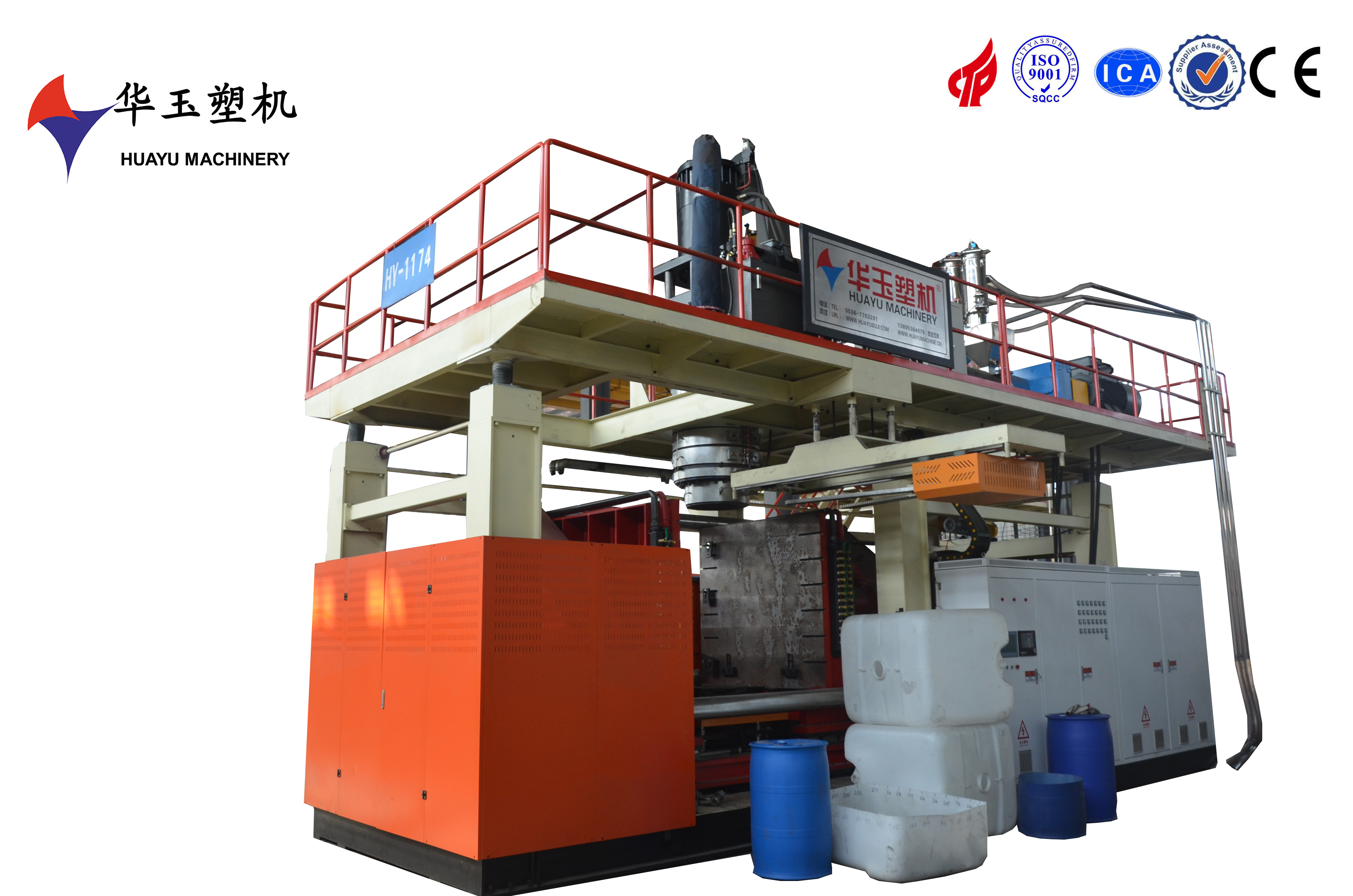

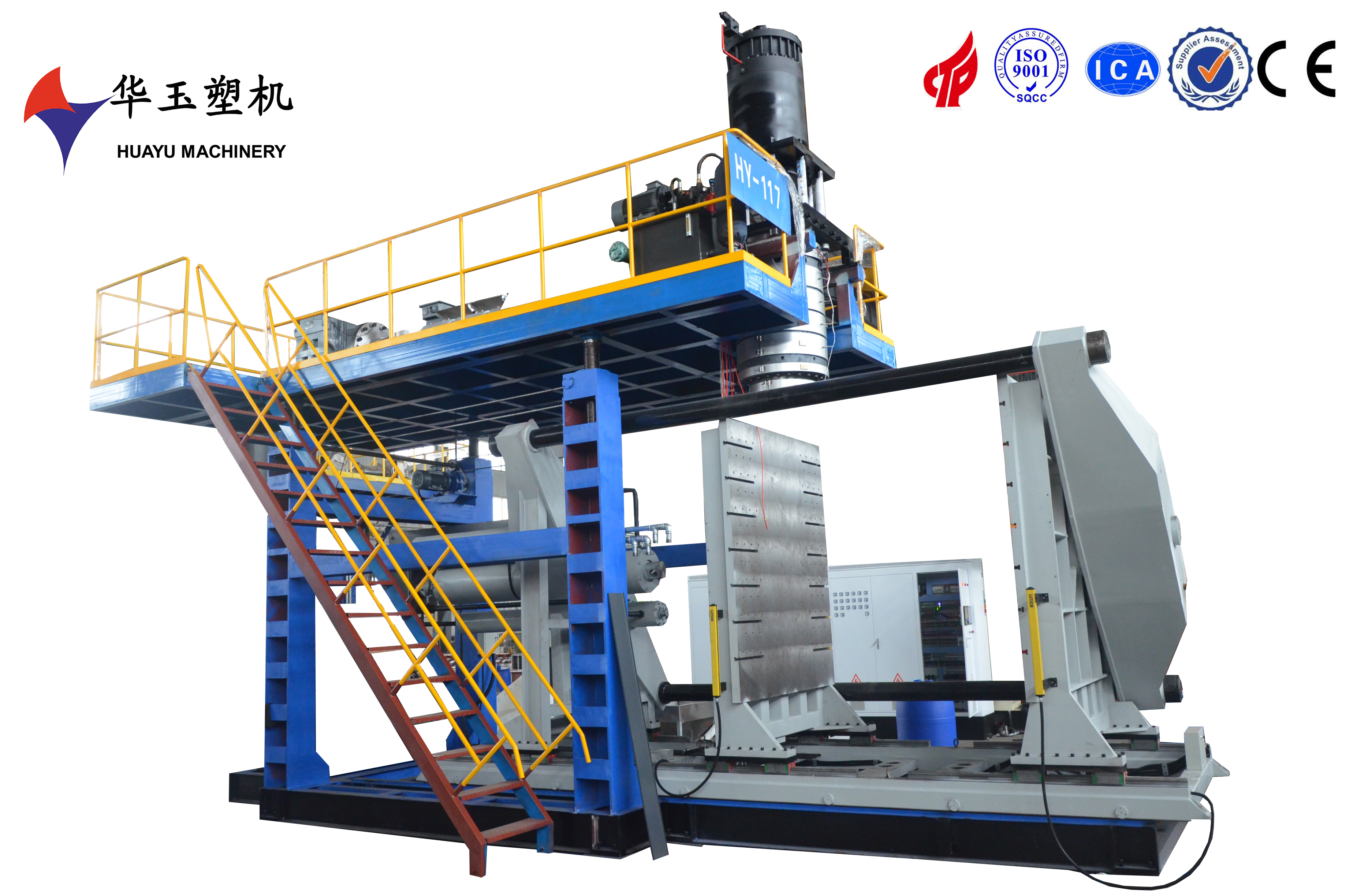

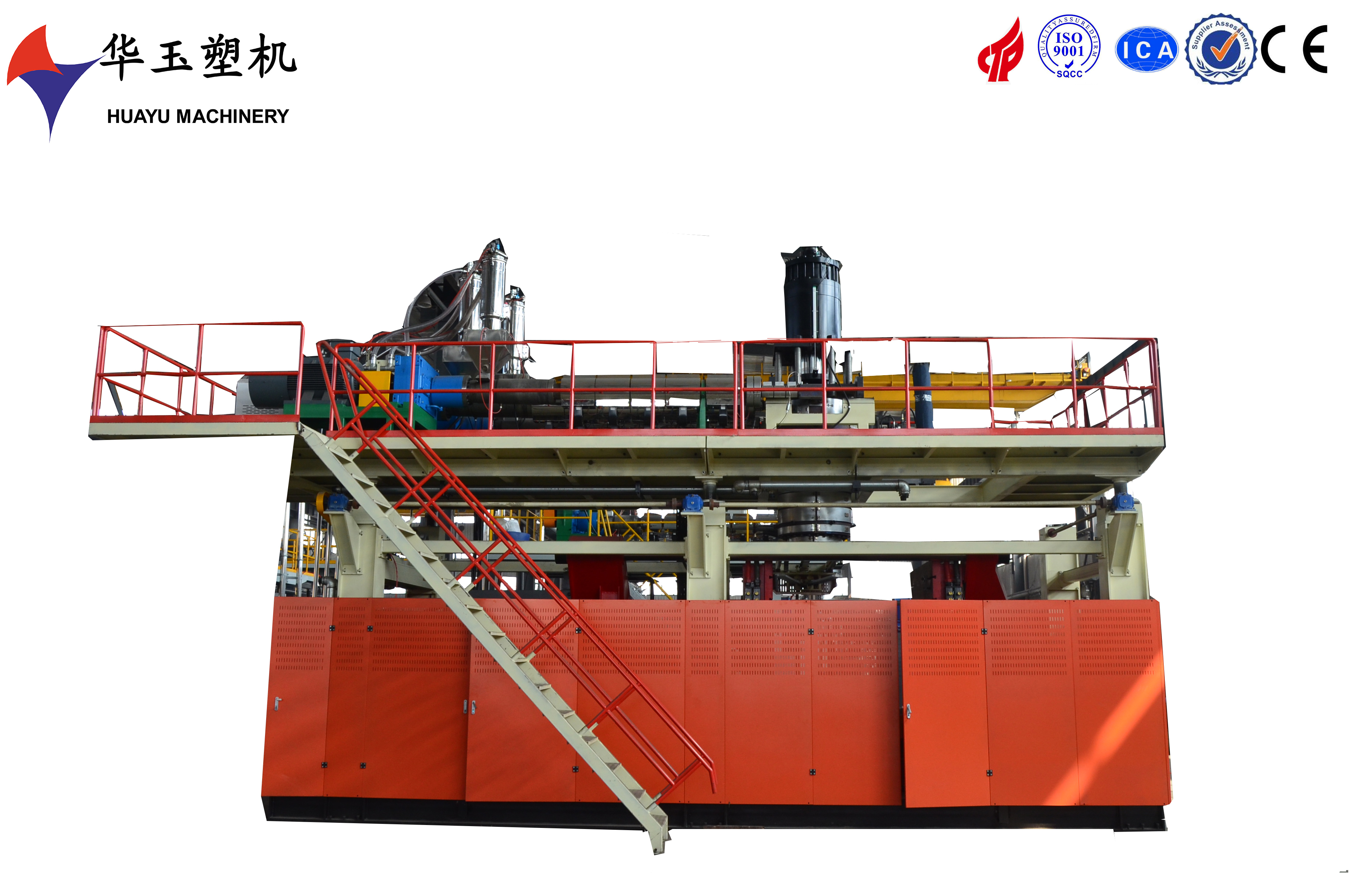

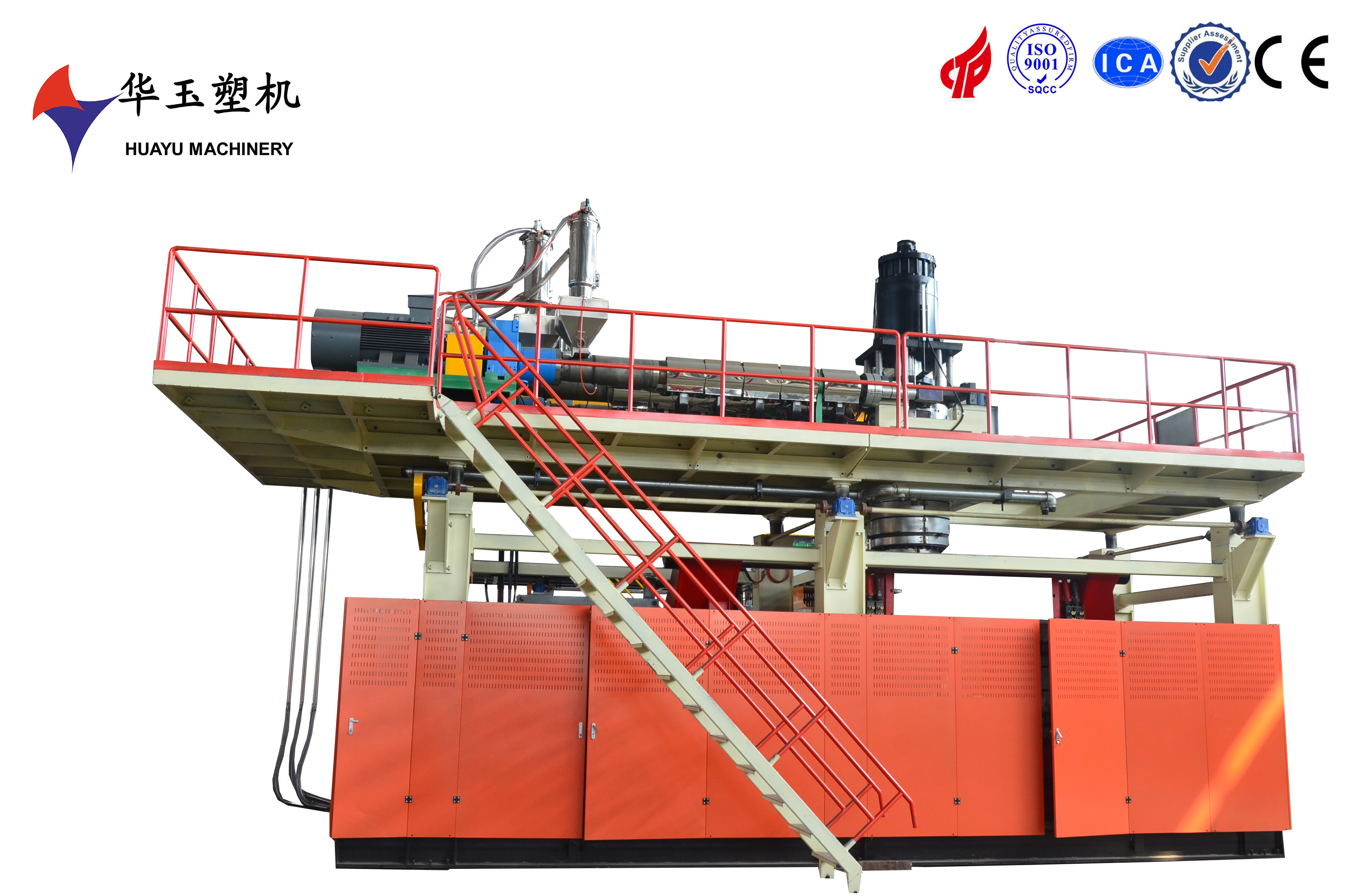

1000L 1LAYER Blow Moulding Machine for Large Plastic Production
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001, CE |
| Model Number | HYBM1000-1 |
| Minimum Order Quantity | 1 SET |
| Price | 320000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | T/T,L/C |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Air Supply | 0.8*6(Mpa*Cubic Meter Per Minute) | Total Weight | 80T |
|---|---|---|---|
| Die Head Heating | 60KW | Temperature Control | Modular Temperature Control |
| Extruder Motor | 37 KW | Tataol Power | 290 |
| Feeder Type | Vacuum Feeder | Mould Material | Aluminum |
| Machine Type | High Speed Plastic Bottle Making Machine | Average Power | 180kw |
| Recyclability | Recyclable | Screw Material | 38CrMoAlA，Nitriding |
| Automation Level | Fully Automatic | Plc Brand | SIEMENS |
| Clamping Force | 200 Tons | ||
| Highlight | 1000L blow moulding machine,large plastic production machine,IBC tank blow molding equipment |
||
You can tick the products you need and communicate with us in the message board.
Product Description
The HUAYU1000L-1 Blow Moulding Machine features an innovative design, making it perfect for large plastic product production. It ensures high precision and consistent product quality, with high-speed operation and energy-efficient technology reducing operational costs.
|
equipment parts |
main parameter |
brand |
|
|
main Hydraulic station |
oil tank capacity |
890L |
huayu |
|
main oil pump |
gear pump163CC |
sumitomo |
|
|
servo motor |
48kw |
Inovance |
|
|
valve |
control the pressure direction |
YUKEN |
|
|
expand cylinder |
φ50mm |
huayu |
|
|
seal |
sealing good, wear-resisting, long service life. |
Hard seal |
|
|
explanation |
Servo motor, less energy consumption, high efficiency, low noise
|
|
|
|
servo station ( thickness control system ) |
oil tank capacity |
200L |
|
|
pump model |
single stage pump 23ml/r |
sumitomo |
|
|
pump motor |
7.5kw |
Siemens |
|
|
servo valve |
controller of thickness |
MOOG |
|
|
points |
200 |
MOOG |
|
|
filtration precision |
3um |
||
|
thickness oil cylinder |
φ500 |
||
|
thickness stroke |
65mm |
||
|
explanation |
thickness controller, response speed, control accuracy.thickness change curve is shown, adjust simple and intuitive. |
|
|
