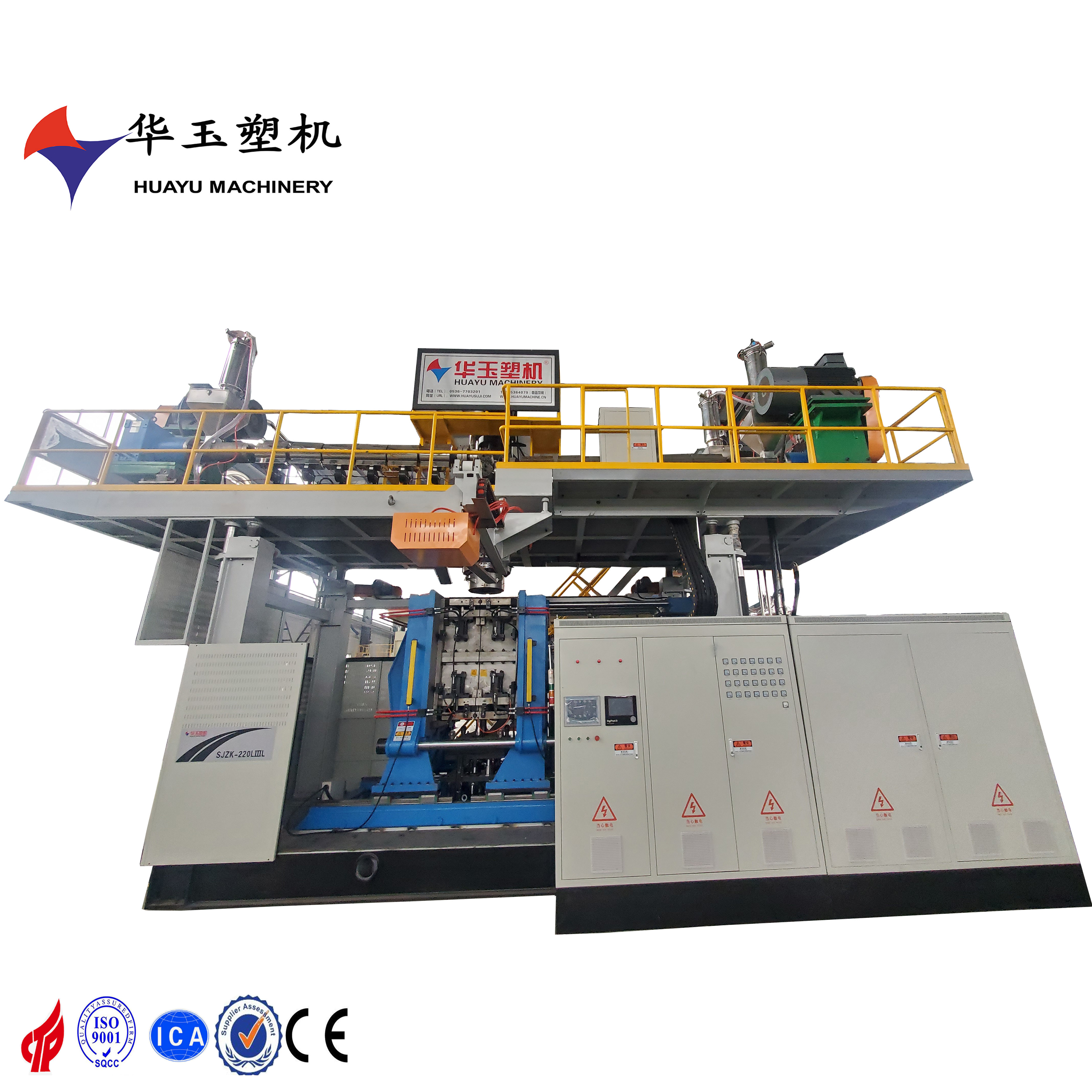

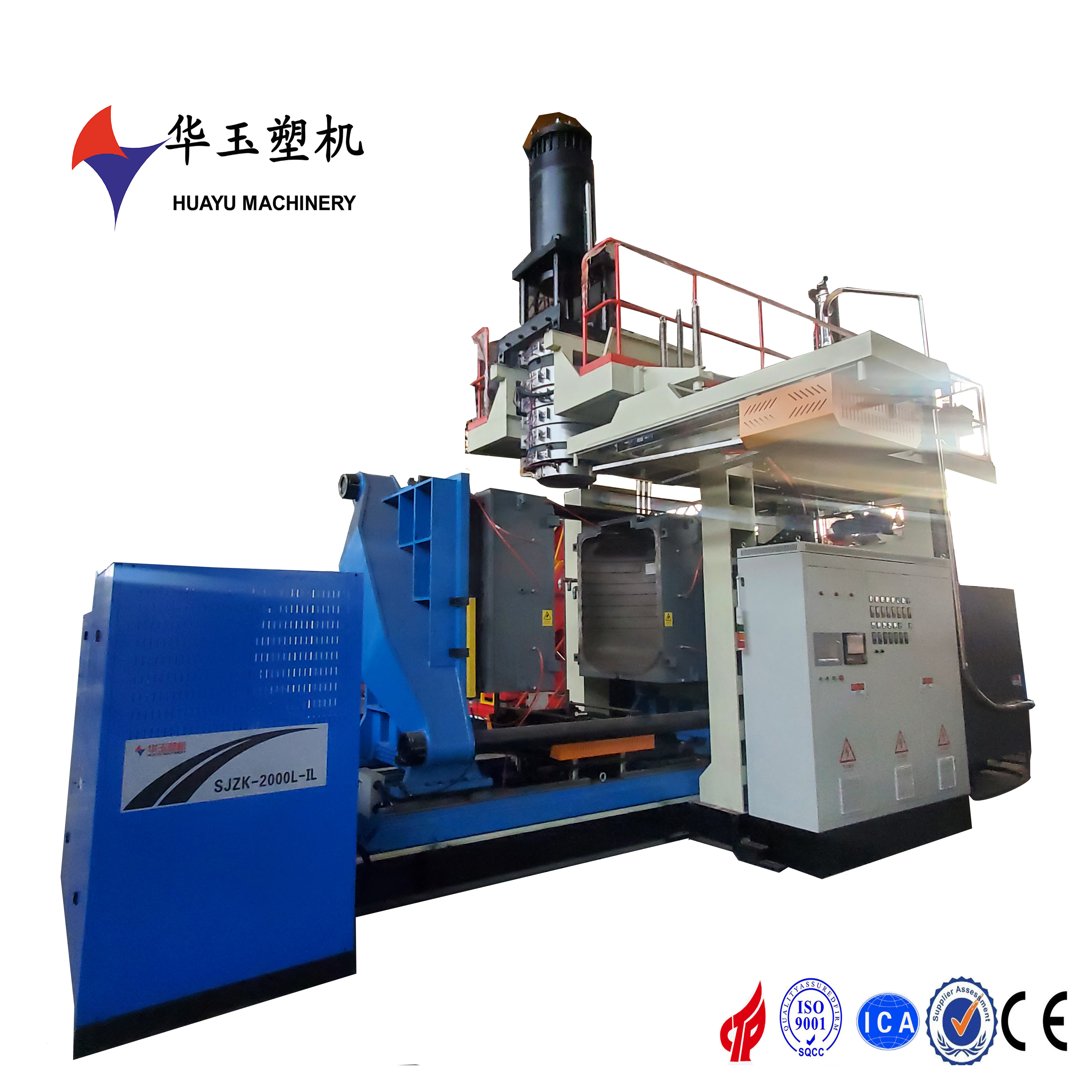

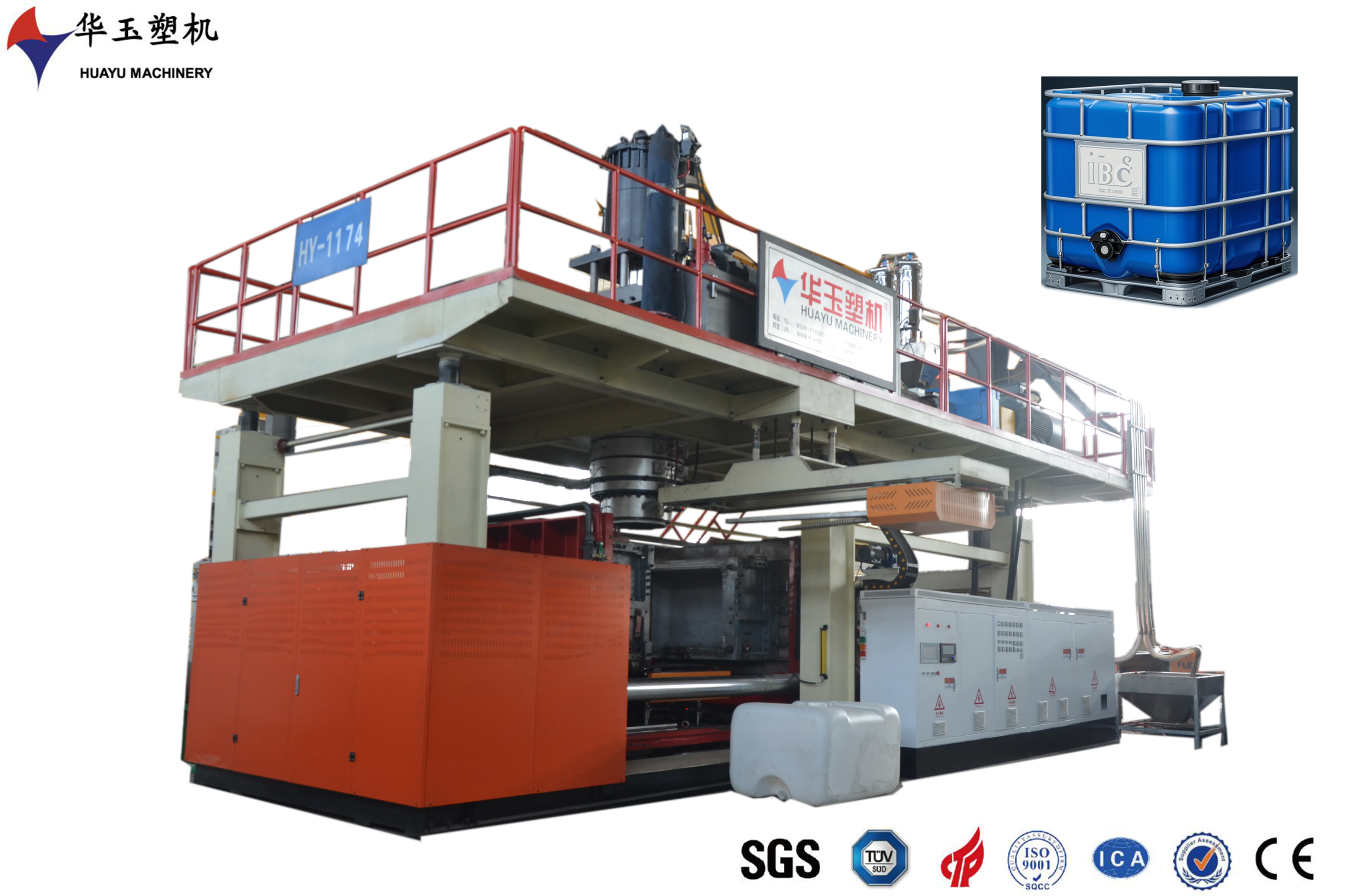

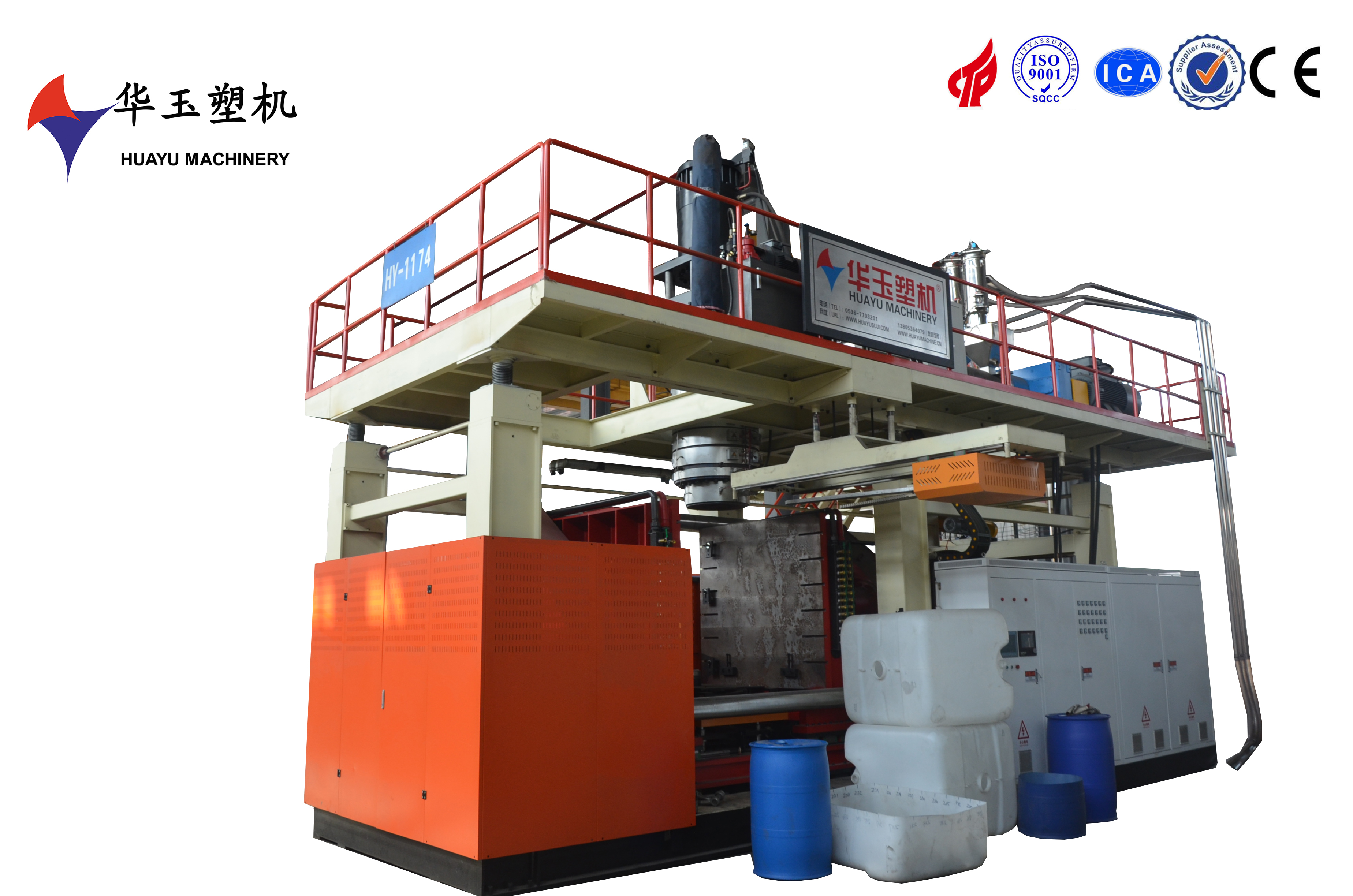

HUAYU1000L-2 Blow Moulding Machine for Large Plastic Containers
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001, CE |
| Model Number | HYBM1000-2 |
| Minimum Order Quantity | 1 SET |
| Price | 360000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | T/T,L/C |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output | 600KG/H | Total Power | 260kw |
|---|---|---|---|
| Plc | SIEMENS | Automation Level | Fully Automatic |
| Key Selling Points | Long Service Life | Mold Type | Single Station |
| Max. Product Diameter | 1200 Mm | Air Consumption | 3m3/min |
| Extruder Type | Single Screw | Condition | New |
| Max. Product Height | 1400 Mm | Automatic | Yes |
| Servo Motor | 57kw | Feeder Type | Vacuum Feeder |
| Die Head Heating | 90KW | ||
| Highlight | large plastic container blow molding machine,IBC tank blow molding equipment,HUAYU1000L-2 blow moulding machine |
||
You can tick the products you need and communicate with us in the message board.
Product Description
The HUAYU1000L-2 Blow Moulding Machine provides a high-performance solution for manufacturing large plastic containers. It features advanced automation and energy-efficient technology, ensuring high precision and consistent product quality, with a robust construction guaranteeing long-term reliability.
|
equipment parts |
main parameter |
brand |
|
|
clamping system |
clamping structure |
two pull rods, center directly pushing |
huayu |
|
clamping force |
1800KN |
||
|
platen size |
1700*1800*80mm (W*H*T) |
||
|
max. mould size |
1400*1600mm (W*H) |
||
|
distance between platens |
1100-2500mm |
||
|
pull rod size |
φ194mm |
||
|
clamping cylinder |
1400mm×2,300mm×1 (φ*H) |
||
|
linear guide |
65mm |
hiwin |
|
|
linear guide length |
1600mm× 6 pieces |
||
|
stroke control |
displacement sensor |
omron |
|
|
explanation |
smooth running, no noise; the clamping force is big |
||
|
blowing unit |
sealing width |
according to products |
huayu |
|
stretching stroke |
according to products |
||
|
blow pin up/down stroke |
300mm |
||
|
air seat stroke |
400mm |
||
|
maximum air pressure |
0.8Mpa |
||
|
air consumption |
1.5m3/min |
||
|
explanation |
with pre-blowing function, air blowing pin independent design which relize convenient replacement and multiply usage |
||
