5000L IBC Tank Blow Molding Machine with Siemens Control System
| Place of Origin | CHINA |
|---|---|
| Brand Name | Huayu |
| Certification | CE,TUV,ISO9001，SGS |
| Model Number | 5000l |
| Minimum Order Quantity | 1 SET |
| Price | negotiation |
| Packaging Details | The machine will be disassembled into many parts for container transportation. |
| Delivery Time | 4 months |
| Payment Terms | L/C, T/T |
| Supply Ability | 40sets/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | 5000L IBC tank blow molding machine,IBC tank blow molding machine with Siemens control,industrial blow molding machine for IBC tanks |
||
|---|---|---|---|
Product Description

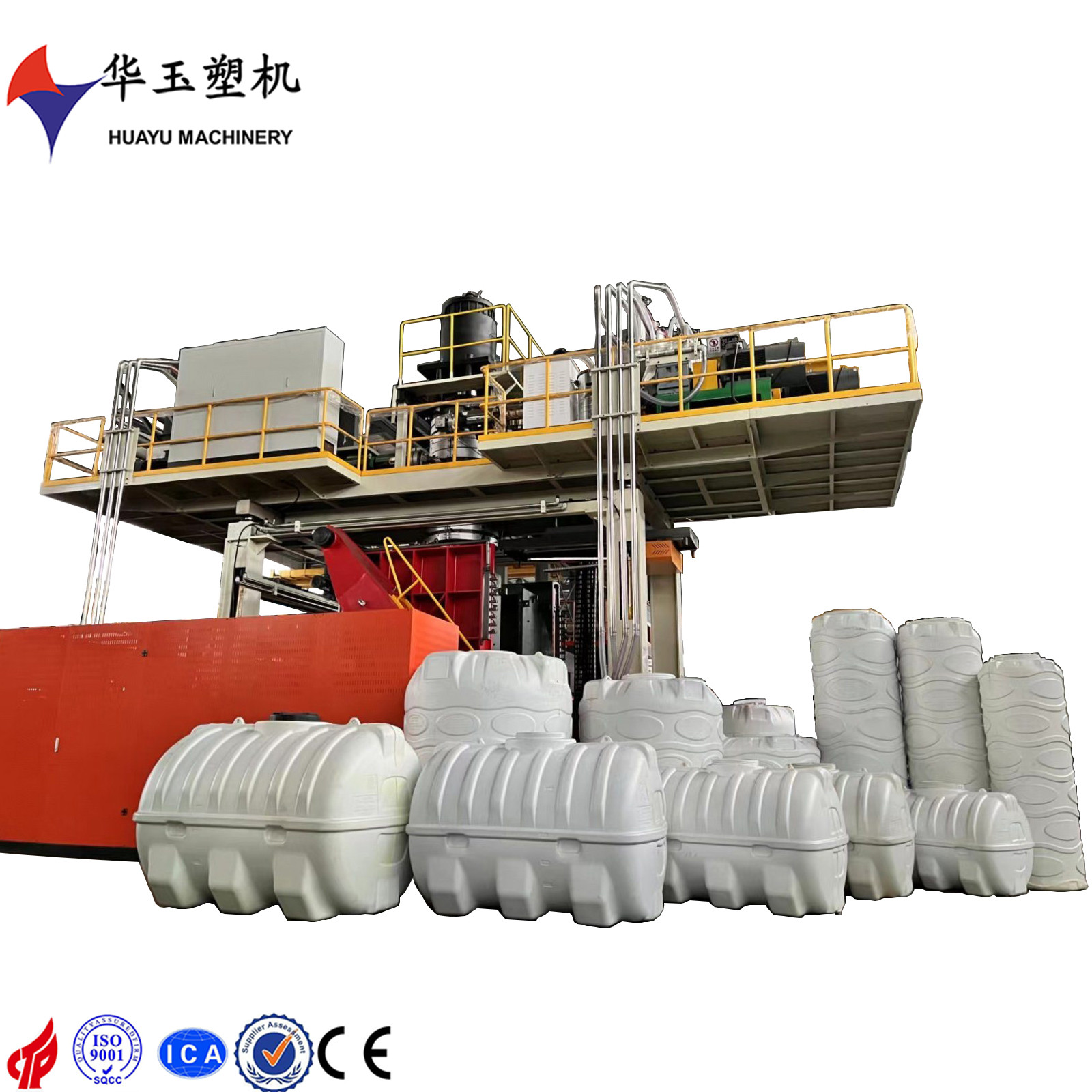

HYBM-5000L-1 plastic water tank blow moulding machine
|
5000L |
1 layer | |
| Capacity rang | L | 1500-5000 |
| Machine dimension | M | 13.5*6*8.8 |
| Average | KW | 160 |
| Total power | KW | 380 |
| Accumulator capacity | KG | 180 |
| Extruder motor | KW | 160 |
| Screw diameter | MM | 150 |
| Screw L/D ratio | 28:1 | |
| Plasticizing capacity | KG/H | 450 |
| Platen size | MM | 2400*2600 |
| Platen distance | MM | 1600-4000 |
| Clamping force | KN | 3500 |
| Servo motor | KW | 60 |
Machine detais
Siemens remote control system,Equipped with Schneider soft starter
German Siemens brand,China Inovance Hydraulic Servo Drive System
Huayu independently develops and designs screw, which is more efficient in cooling and more stable in plasticizing
The screw adopts cast aluminum heating ring for heat conduction effect, and the independent cooling fan hood is closed quickly to control the temperature deviation
