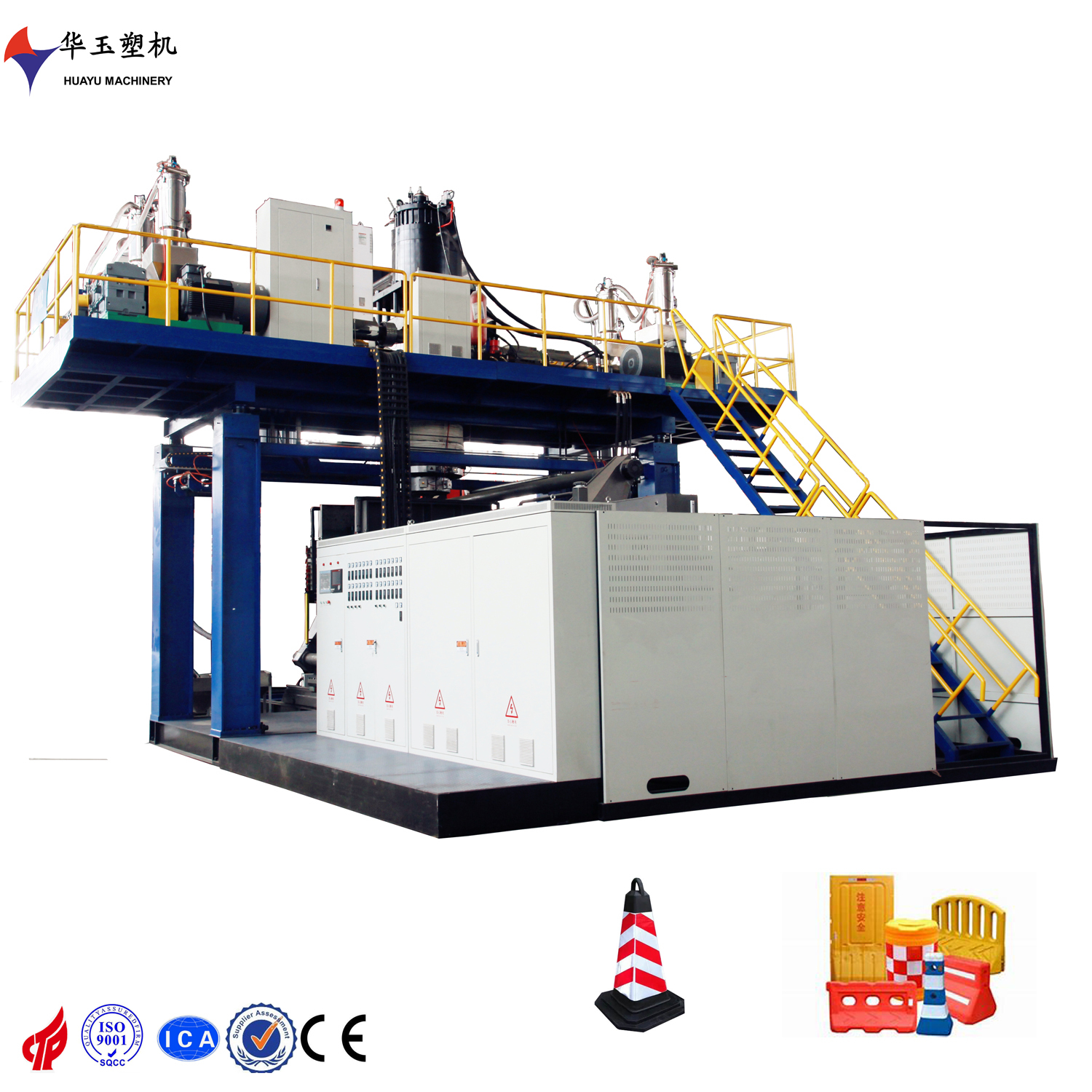

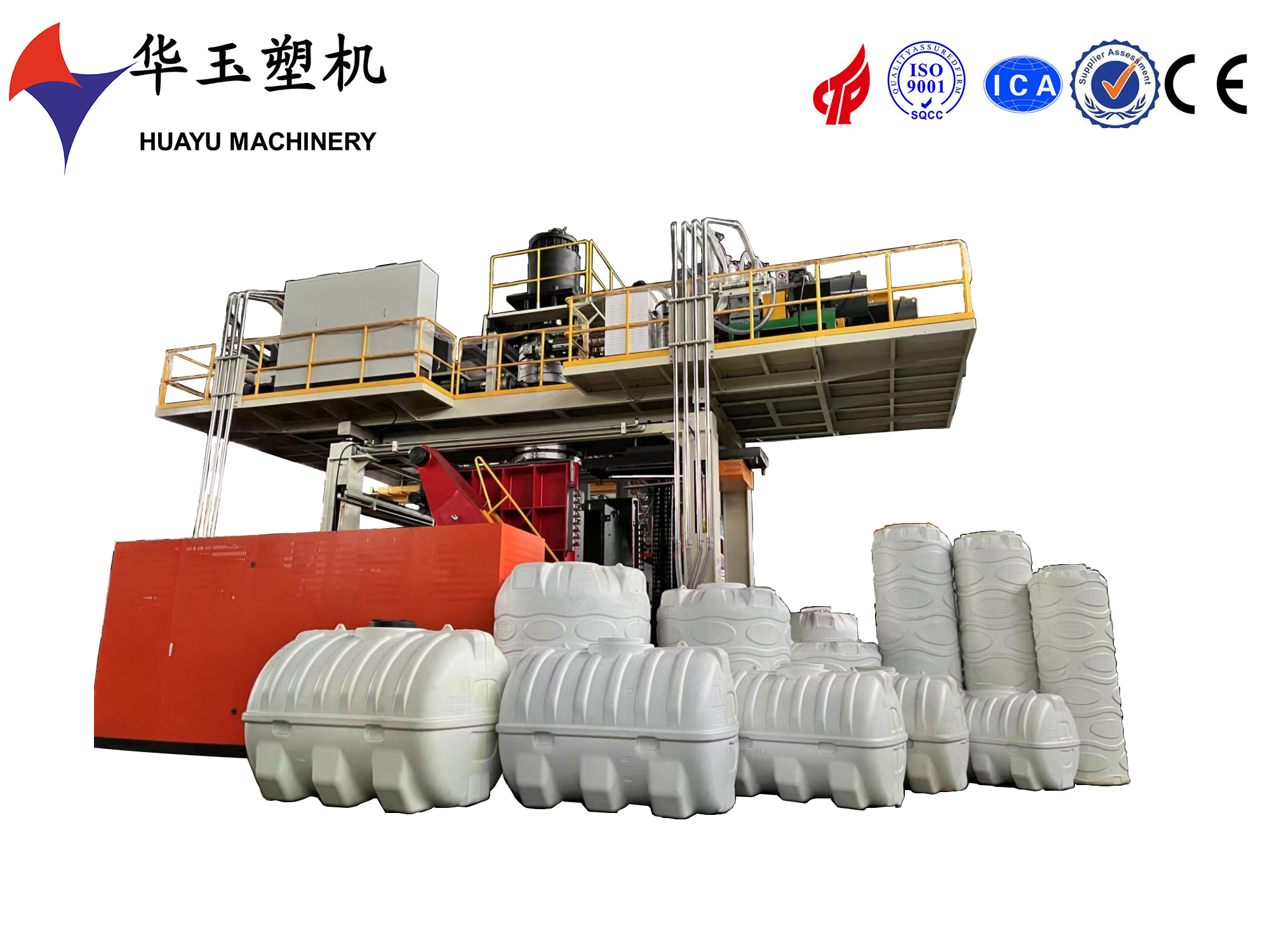

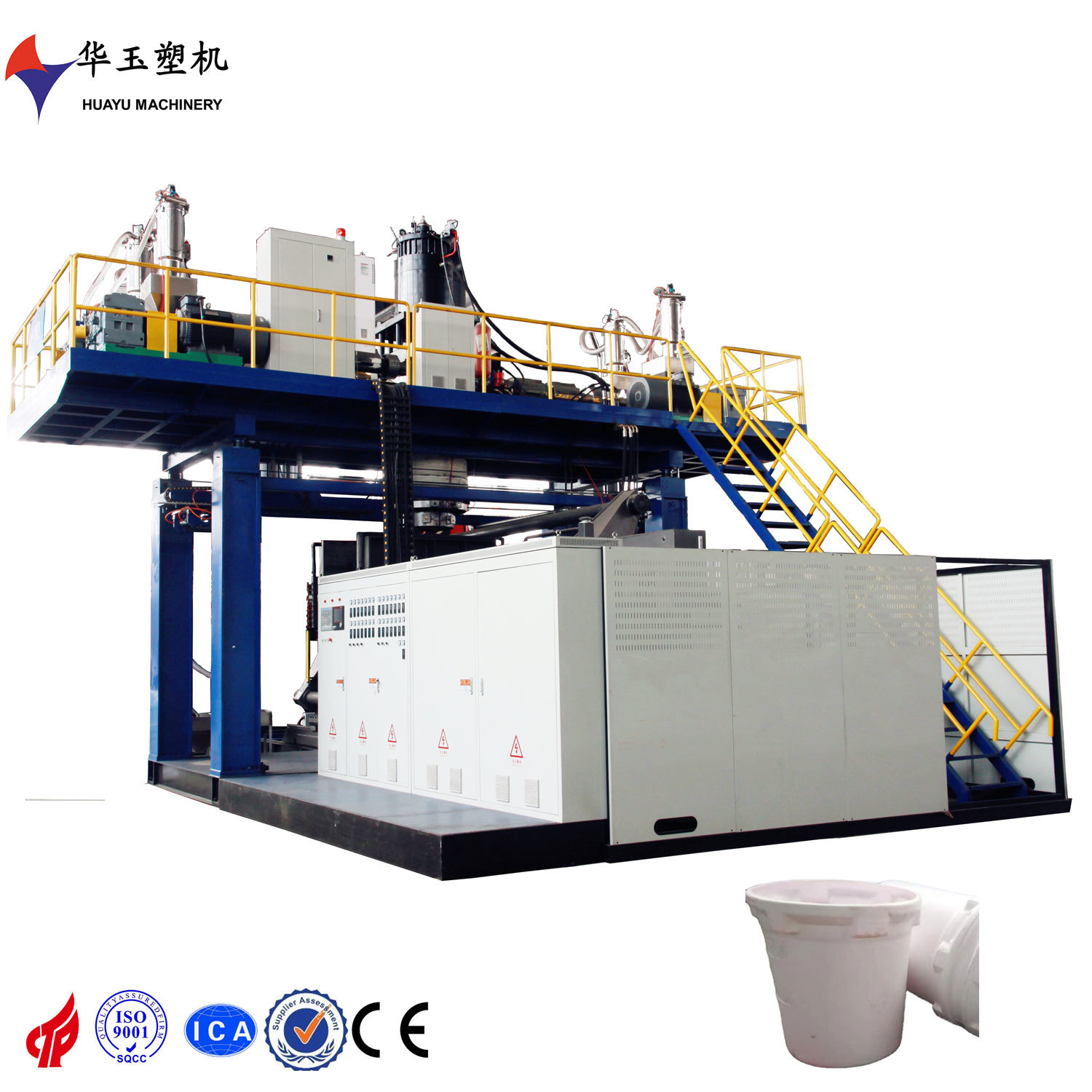

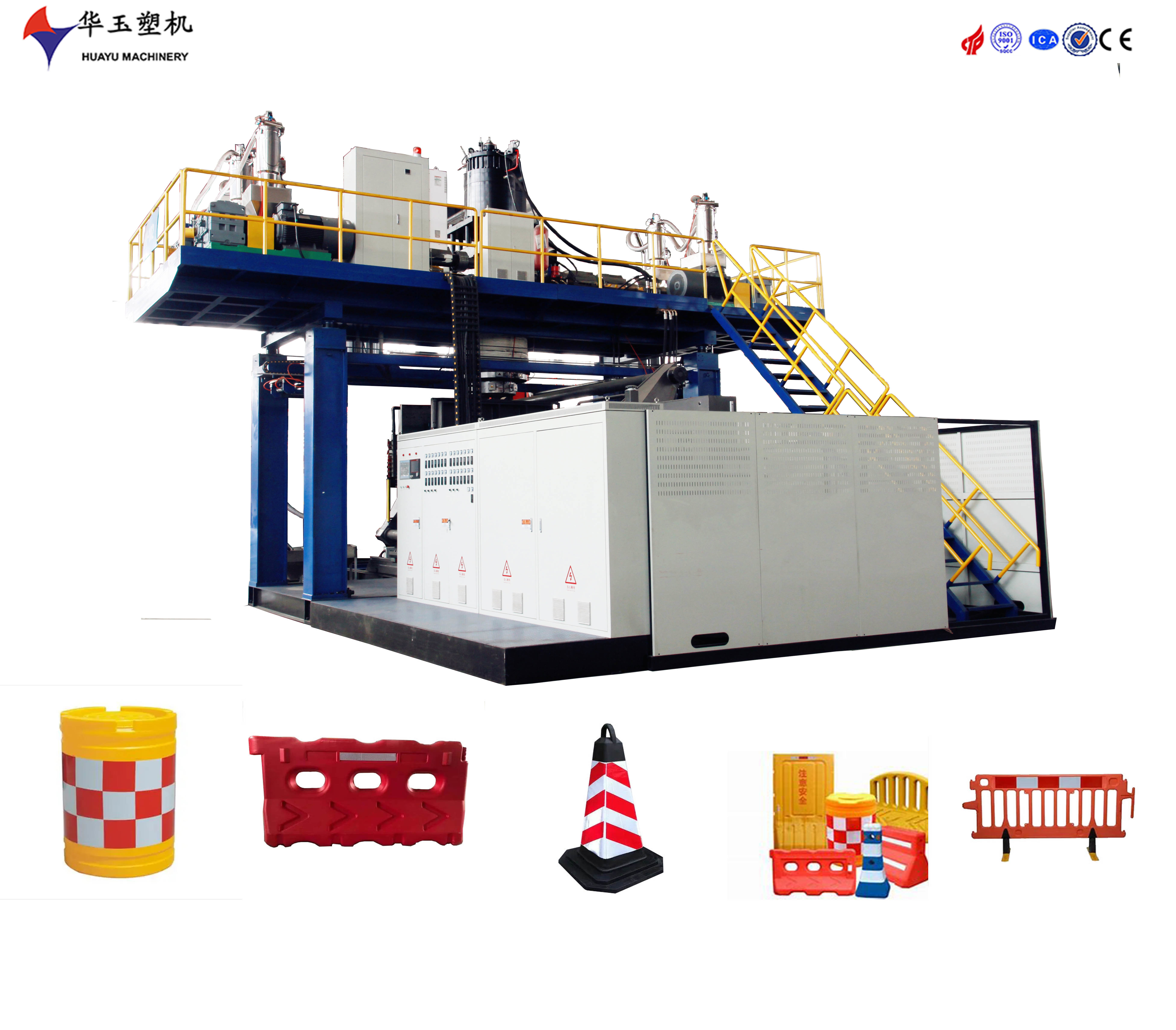

1600L 4-Layer Blow Moulding Machine for HMWHDPE Plastic Production

  • 1600L 4-Layer Blow Moulding Machine for HMWHDPE Plastic Production
  • 1600L 4-Layer Blow Moulding Machine for HMWHDPE Plastic Production
  • 1600L 4-Layer Blow Moulding Machine for HMWHDPE Plastic Production
  • 1600L 4-Layer Blow Moulding Machine for HMWHDPE Plastic Production
  • 1600L 4-Layer Blow Moulding Machine for HMWHDPE Plastic Production
Place of Origin CHINA
Brand Name HUAYU
Certification ISO9001 CE
Model Number HYBM1600-4
Minimum Order Quantity 1 SET
Price 240000 USD
Packaging Details be disassembled into many parts for container transportation
Delivery Time 4 MONTHS
Payment Terms L/C,T/T
Supply Ability 1SET 120DAYS

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Total Weight 24T Machine Dimensions 10*5.5*7m
Layers 3 LAYERS Temperature Control Modular Temperature Control
Plasticizing Capacity 600kg/h Platen 1700*1800MM
Applicable Material HMWHDPE Mould Material Aluminum
Accumulator Capacity 30KG Controller PLC+Touch Screen
Color Customied Average Power 180kw
Cleaning Method Easy Cleaning Tataol Power 285
Cooling System Automatic Air Cooling
Highlight

1600L HDPE blow moulding machine

,

4-layer IBC tank molding machine

,

HMWHDPE plastic production equipment
You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description
1600-4 Blow Moulding Machine - Low-Maintenance 4-Layer 1600L Plastic Production
Key Specifications
Attribute Value
Total Weight 24T
Machine Dimensions 10*5.5*7m
Layers 3 LAYERS
Temperature Control Modular temperature control
Plasticizing Capacity 600kg/h
Platen 1700*1800MM
Applicable Material HMWHDPE
Mould Material Aluminum
Accumulator Capacity 30KG
Controller PLC+Touch Screen
Color Customized
Average Power 180kw
Cleaning Method Easy cleaning
Total Power 285
Cooling System Automatic air cooling
Product Description

The HUAYU1600L-4L Blow Moulding Machine offers a low-maintenance design, making it ideal for continuous 4-layer 1600L plastic production. It features advanced automation and energy-efficient technology, ensuring high precision and consistent product quality.

Extrusion System
  • Screw diameter: 90/90/90/90/90mm (Nitrided 38CrMoAIA)
  • Screw L/D ratio: 28:1 (Special designed screw ensures uniform and efficient material plasticizing)
  • Extruder motor: 45/45/45/45/45kw
  • Reducer: 250/250/250/250/250 (Best quality brand in China, long life and low noise)
  • Screw heating power: 5kw*25
  • Plasticizing capacity: 500kg/h
Die Head
  • Accumulator capacity: 60kg (Patented design)
  • Die diameter: According to products
  • Die head heating power: 100kw
1600L 4-Layer Blow Moulding Machine for HMWHDPE Plastic Production 0
