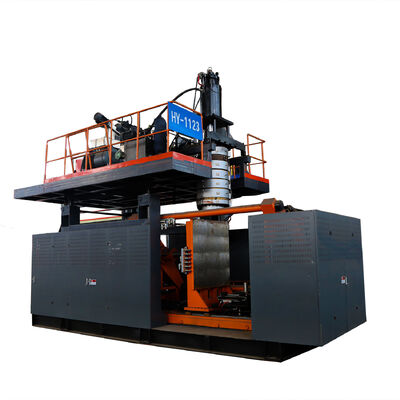

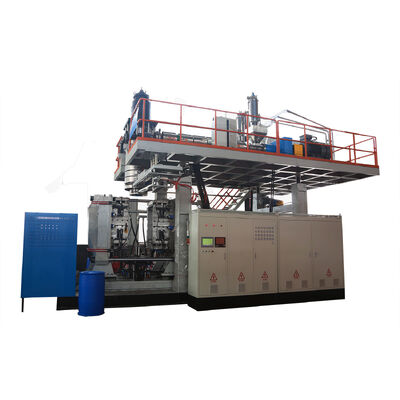

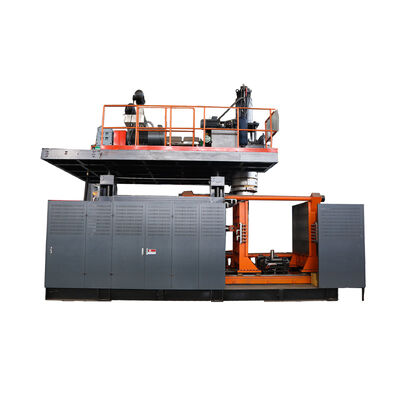

220L Two-Layer Double-Ring IBC Tank Blow Molding Machine for High-Standard Barrel Production
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM-220L,2layers |
| Minimum Order Quantity | 1 Set |
| Price | 260000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 Months |
| Payment Terms | L/C,T/T |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | Pending | Total Power | 335kw |
|---|---|---|---|
| Average Power | 200kw | Machine Dimension (L*W*H) | 7*6*6 |
| Productivity | 20-30pcs/h | Screw Diameter | 110/110mm |
| Screw L/D Ratio | 30：1 | Accumulator Capacity | 18kg |
| Die Diameter | Max 300mm | Max. Mould Size | 1200*1500mm(W*H) |
| Maximum Air Pressure | 0.8Mpa | Air Consumption | 0.8×3（MPa × Cubic Meter Per Minute） |
| Highlight | 220L IBC Tank Blow Molding Machine,Two-Layer Blow Molding Machine,Double-Ring Barrel Blow Molding Equipment |
||
Product Description
High-Standard 220L Two-Layer Double-Ring Barrel Blow Molding Equipment
Key Advantages
- Engineered for unmatched precision, producing 220L double-ring drums with consistent wall thickness and flawless structural strength
- Elevates production efficiency with optimized workflows, reducing cycle times while maintaining premium output quality
- Built with heavy-duty industrial components, ensuring long-term stable operation and minimizing unplanned maintenance downtime
- Features a user-friendly intelligent control system, allowing quick parameter adjustments to accommodate diverse production requirements
- Advanced two-layer co-extrusion technology enhances the drums' durability and barrier performance, ideal for harsh industrial applications
- Broad material compatibility supports processing of various plastics, enabling flexible production of custom double-ring drums
- Complies with international safety norms, equipped with comprehensive safety safeguards to protect operators and equipment alike
Hydraulic System Specifications
| Main Oil Tank Capacity | 890L |
|---|---|
| Main Oil Pump | Gear Pump 125CC |
| Main Oil Pump Motor | 37kW |
| Servo Oil Tank Capacity | 200L |
| Servo Oil Pump Model | Plunger Pump 22 |
| Servo Oil Pump Motor | 7.5kW |
| Servo motor, less energy consumption, high efficiency, low noise | |
Electronic System Specifications
| Main Operation Panel | Touch Screen 12" |
|---|---|
| Control System | PLC |
| Thickness Control Points | 100 Points |
| Temperature Control | PLC Module |
