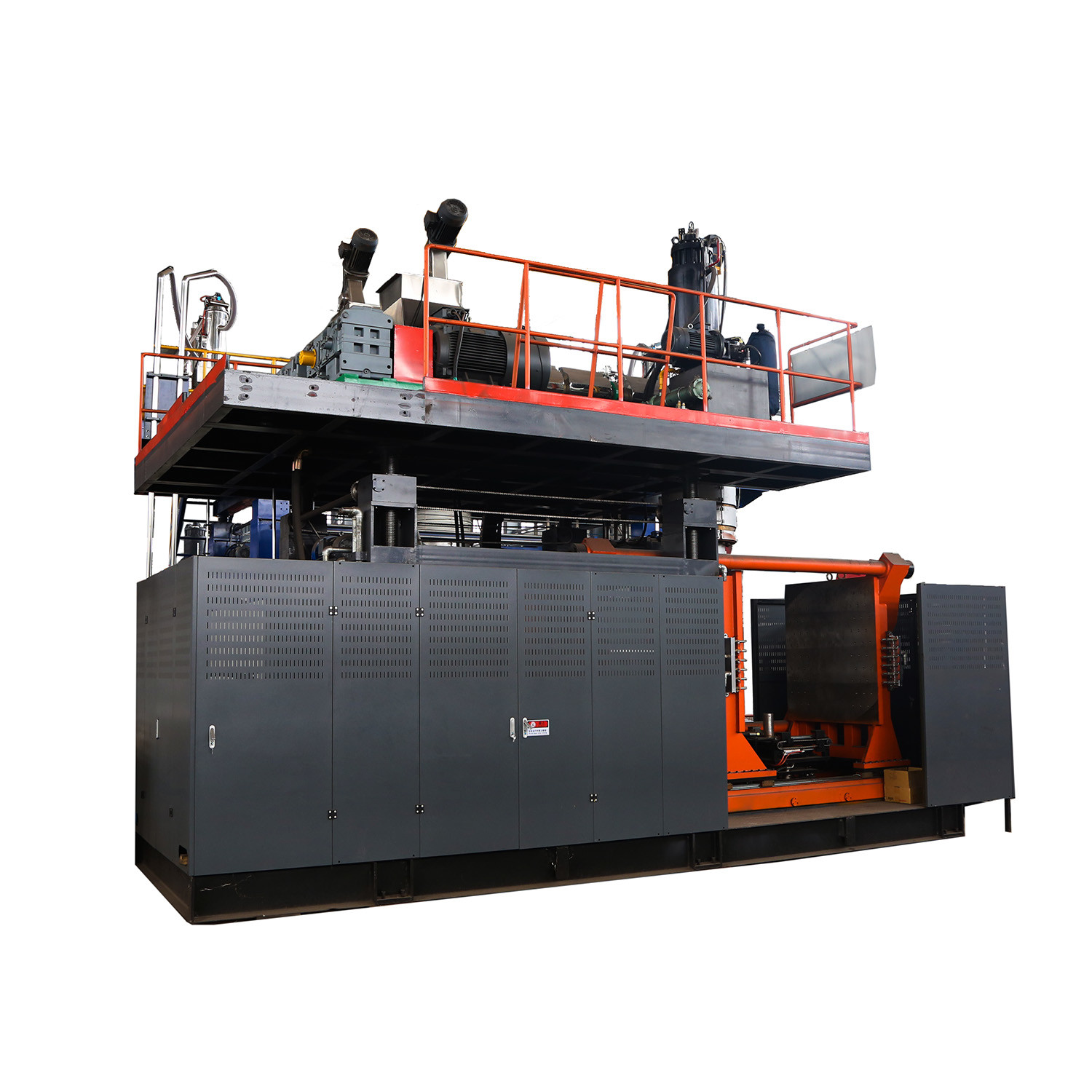

Sturdy 220L Double Ring 1 Layer Barrel Blow Moulding Machine Impact Resistant
| Place of Origin | SHANDONG WEIFANG |
|---|---|
| Brand Name | HUAYU |
| Certification | CE,ISO9001 |
| Model Number | HY220L-1Layer |
| Minimum Order Quantity | 1 SET |
| Price | Negotiate |
| Packaging Details | The machine will be disassembled into many parts for container transportation. |
| Delivery Time | 4 months |
| Payment Terms | L/C, T/T |
| Supply Ability | 4 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Capacity | 220L | Layer | 1 |
|---|---|---|---|
| Type | Double-ring Bucket | Material | HDPE |
| Durability | High | Impact Resistance | Good |
| Corrosion | Excellent | Color | Customized |
| Highlight | 220L plastic drum blow molding machine,1 Layer plastic drum blow molding machine,Impact Resistant stackable barrel blow molding machine |
||
Product Description
Sturdy 220L Double-Ring 1 Layer Barrel Durable,Impact-Resistant ,Long-lasting
Production Efficiency:
High production speed
The Huayu 220L double-ring bucket 1-layer blow molding machine has a high production speed, which can produce many buckets per hour, significantly improving production efficiency and meeting the large-scale production needs of users.
Product Quality:
Excellent product quality
The machine ensures the production of high-quality 220L double-ring buckets. The products have accurate dimensions, good wall thickness uniformity, and strong physical properties, meeting or even exceeding relevant industry standards.
Good surface finish
The blow-molded buckets have a smooth surface, no obvious defects such as bubbles, shrinkage marks or warping, providing an excellent appearance and touch feeling, enhancing the market competitiveness of the products.
Operation and Maintenance
Simple operation
The Huayu blow molding machine is designed with a user-friendly interface and simple operation procedures. Operators can quickly get familiar with the operation process and start production after a short training period.
Machine specification table
|
Material Extrusion System |
Overall performance |
Screw diameter | φ120mm |
| Screw L/D ratio | 30:1 | ||
| Screw material | Nitrided 38CrMoAlA | ||
| Barrel material | Nitrided 38CrMoAlA | ||
| Driving mode | AC motor+High Torque Hard Gear Surface Guomao Reducer | ||
| Driving Powerr | 120KW | ||
| Plasticizing capacity(HDPE) | 240kg/h | ||
| Output(Production Cycle) | 20PCS/h | ||
| Heating Method | Using cast aluminum heater,7 sections ,6kw/section. | ||
| Temperature Control | Modular Temperature Control | ||
| Cooling Method | The feeding section is water-cooled with temperature control , and the other sections are air-cooled. | ||
| Barrel Parameters | Feeding Section Structure | Unslotted | |
| Cooling Section Length | 400 mm | ||
| Die Head | Structural Form | Huayu Patented Technology Single-Layer Material Storage Cylinder Die | |
| Maximum Diameter of Extrusion Port | 280mm | ||
| Heating Method | Adopting nano-insulation material heater, 7 sections, 6kw/section | ||
| Temperature Control | Modular Temperature Control | ||
|
Energy distribution |
Extruder Power | 120KW | |
| Hydraulic System Motor Power | 45KW Servo Motor | ||
| Thickness Control Motor Power | 7.5 KW | ||
| Heating Power of Material Extrusion System | 7section, 6KW/section | ||
| Die Head Heating Power | 7section ,6KW/section | ||
| Compressed air consumption | 0.8×6MPa*m3 /min | ||
| Cooling water consuption | 0.3×20°×30MPa*℃*m3/h | ||
| Total Power | 256.5KW | ||
| Average consumption | 150kw/h | ||
