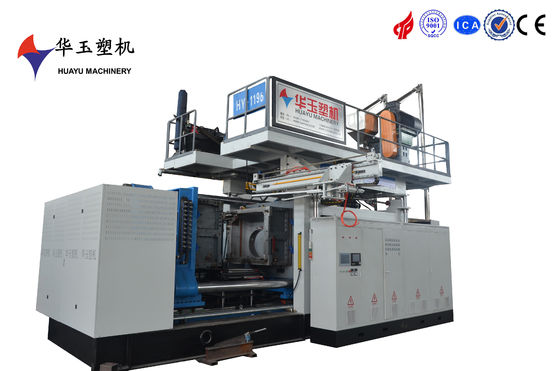

Double L Ring Drum Blow Moulding Machine 2 Layers 220L For UV Resistance
| Place of Origin | SHANDONG WEIFANG |
|---|---|
| Brand Name | HUAYU |
| Certification | CE,ISO9001 |
| Model Number | HY220L-2Layer |
| Minimum Order Quantity | 1 SET |
| Price | Negotiate |
| Packaging Details | The machine will be disassembled into many parts for container transportation. |
| Delivery Time | 4 months |
| Payment Terms | L/C, T/T |
| Supply Ability | 4 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Applicable Material | HDPE | Capacity Range | 220L,2layers |
|---|---|---|---|
| Voltage | Pending | Total Power | 335kw |
| Average Power | 200kw | Machine Dimension | 7*6*6 |
| Productivity | 20-30pcs/h | Hopper Material | Stainless Steel |
| Feeding Type | Vacuum Loaded | Feeding Motor | 5.5kw |
| Screw Diameter | 110/110mm | Screw L/D Ratio | 30:1 |
| Extruder Motor | 90/90kw | ||
| Highlight | 2 Layers Drum Blow Moulding Machine,220L Drum Blow Moulding Machine,UV Resistance water tank blow moulding machine |
||
Product Description
The advantage of Huayu 220L-2layers Double L RIng Drum
1. Robust and Durable Structure:Made from high-density polyethylene(HDPE),it features high strength,corrosion resistance,wear resistance,and impact resistance,ensuring a long service life.
2. Double-layer Design Advantages:The outer layer can resist UV rays and prevent aging,while the inner layer is made of pure resin to ensure the purity and safety of the contents.
3. Excellent Sealing Performance:The tight seal between the bucket cover and the body effectively prevents leakage,making it suitable for storing and transporting hazardous chemicals.
4. Convenient for Transportation and Storage:The bucket design facilitates stacking,saving space,and supports forklift loading and unloading to improve transportation efficiency.
5. Environmentally Friendly and Recyclable:The material is recyclable and meets environmental requirements.
6. Wide Application:Suitable for multiple industries such as chemical,pharmaceutical,food,and petroleum.
1. Robust and Durable Structure:Made from high-density polyethylene(HDPE),it features high strength,corrosion resistance,wear resistance,and impact resistance,ensuring a long service life.
2. Double-layer Design Advantages:The outer layer can resist UV rays and prevent aging,while the inner layer is made of pure resin to ensure the purity and safety of the contents.
3. Excellent Sealing Performance:The tight seal between the bucket cover and the body effectively prevents leakage,making it suitable for storing and transporting hazardous chemicals.
4. Convenient for Transportation and Storage:The bucket design facilitates stacking,saving space,and supports forklift loading and unloading to improve transportation efficiency.
5. Environmentally Friendly and Recyclable:The material is recyclable and meets environmental requirements.
6. Wide Application:Suitable for multiple industries such as chemical,pharmaceutical,food,and petroleum.
Machine specification table
| Basic Specification | ||
| applicable material | HDPE | China·HUAYU |
| capacity range | 220L,2layers | |
| Voltage | Pending | |
| total power | 335kw | |
| average power | 200kw | |
| Machine dimension (L*W*H) | 7*6*6 | |
| productivity | 20-30pcs/h | |
| Auto Feeder | ||
| hopper material | stainless steel | |
| feeding type | vacuum loaded | |
| feeding motor | 5.5kw | |
| Extrusion System | ||
| Screw diameter | 110/110mm | Nitrided 38CrMoAIA |
| Screw L/D ratio | 30:1 | special designed screw can ensure the material plasticizing uniform and efficient |
| Extruder motor | 90/90kw | |
| Reducer | Flender 54.2*2 | Best quality brand in china ,long life and low noise |
| Screw heating power | 5kw*10 | |
| Plasticizing capacity | 400kg/h | |
