220L 1 Layer Double L Ring Drum Blow Moulding Machine For HDPE Manufacturing
| Place of Origin | CHINA |
|---|---|
| Brand Name | Huayu |
| Certification | CE,TUV,ISO9001，SGS |
| Model Number | HYBM-220L-1 |
| Minimum Order Quantity | 1 SET |
| Price | negotiation |
| Packaging Details | The machine will be disassembled into many parts for container transportation. |
| Delivery Time | 4months |
| Payment Terms | L/C, T/T |
| Supply Ability | 40sets/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 380v Or Customized | Output (kg/h) | 450 |
|---|---|---|---|
| Plc Brand | Siemens | Screw Diameter (mm) | 120 |
| Screw L/d Ratio | 30 | Air Pressure(mpa) | 0.8 |
| Parison Control | MOOG 200point | CONTROLLER | PLC+Touch Screen |
| Die Head Heating Power(kw) | 50 | Automation | Automatic |
| Weight (t) | 40 | Mold Platen Size | 1500*1600 |
| Highlight | Double L Ring Drum Blow Moulding Machine,1 Layer Drum Blow Moulding Machine,220L auto blow moulding machine |
||
Product Description
220L 1Layer Double L Ring Drum Full-Auto Plastic Moulding Machine New for HDPE Manufacturing
HYBM220L-1layer blow moulding machine

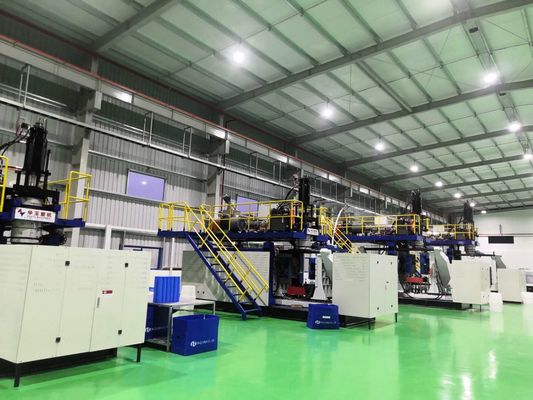

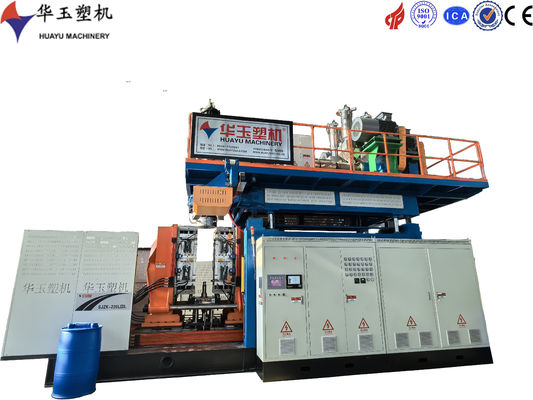

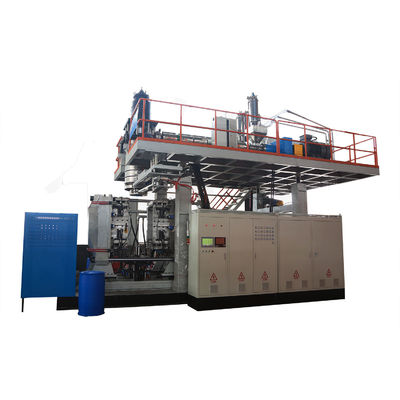

machine photos
Key attributes
Industry-specific attributes
voltage
380v or customized
clamping force (kn)
1200
output (kg/h)
450
Other attributes
plastic processed
HDPE
automation
Automatic
power (kw)
170
weight (t)
40
warranty
1 Year
video outgoing-inspection
Provided
machinery test report
Provided
core components
PLC, Engine, Bearing, Gearbox, motor, Gear, Pump
place of origin
Shandong, China
brand name
Huayu
dimension(l*w*h)
9*5.8*6.2m
plc brand
Siemens
screw l/d ratio
35
screw diameter (mm)
110
No. of Screw Heating Zone
12
screw heating power(kw)
66
extruder motor power(kw)
90
mold platen size(width)(mm)
1500
mold platen size(height)(mm)
1600
air pressure(mpa)
0.8
air comsumption(m³/min)
2.3
die head heating power(kw)
50
key selling points
Competitive Price
Name
220L double L ring drum machine
Material
HDPE
Blow Moulding Type
Extrusion Blow Moulding
After-sales Service Provided
Service Machinery Overseas
Parison Control
MOOG 200point
Certification
CE ISO
Advantages
servo motor remote control
Layer
1-3layers
CONTROLLER
PLC+Touch Screen
Hydraulic Valve
Yuken
