100kg/h PP PE PS Scraps Plastic Pelletizing Machine , Double Stage Granulating Recycling Line

100kg/h PP PE PS Scraps Plastic Pelletizing Machine , Double Stage Granulating Recycling Line

    • 100kg/h PP PE PS Scraps Plastic Pelletizing Machine , Double Stage Granulating Recycling Line
    • 100kg/h PP PE PS Scraps Plastic Pelletizing Machine , Double Stage Granulating Recycling Line
    • 100kg/h PP PE PS Scraps Plastic Pelletizing Machine , Double Stage Granulating Recycling Line
    • 100kg/h PP PE PS Scraps Plastic Pelletizing Machine , Double Stage Granulating Recycling Line
  • 100kg/h PP PE PS Scraps Plastic Pelletizing Machine , Double Stage Granulating Recycling Line

    Product Details:

    Place of Origin: China
    Brand Name: FG
    Certification: CE&ISO
    Model Number: FGRP

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: Negotiable
    Packaging Details: wood box or wood base
    Delivery Time: 50 work days
    Supply Ability: 100 sets per month
    Contact Now
    Detailed Product Description
    Application: Recycle The PP PE PS Material Ouput: 100kg/h
    Work Method: Double Stage Extruder: Single Screw Extruder
    Pelletizer: Vertical Pelletizer Cooling: Water Cooling
    Cutting System: Noodle Cut

    150kg/h PP PE PS scraps double stage granulating recycling line

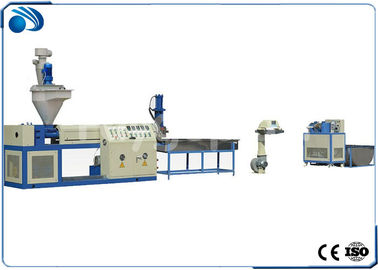

    This line is designed for recycling rigid crushed PP PE PS scraps. It is composed by SJ100 single screw extruder + SJ90 single screw extruder + hydraulic screen changer + water cooling tank + pelletizer + silo.

    The extruder adopt double stage extruder for extrusion and the main Single screw extruder SJ140/28 equipped force feeder which can ensure the material feed into extruder smoothly. The hydraulic screen changer adopt double working posItion, which can ensure no-stop working. The water cooling tank is made of stainless steel and the length is 5m. The air blower is used to dry the water on the material and the pelletizing equipped speed regulator which can control the pelletizing speed.

    This line is highly automatic and it is very easy for operation. It is idea equipment for PP PE PS recycling.

    Techical data:



    Mode FGRP100
    extruder SJ100/SJ90
    motor power 37kw/11
    screen changer 1.5kw
    water cooling tank 3m
    air blower 2.2kw
    pelletizer 3kw
    output 100kg/h





    Offer sample for 150kg/h:
    ​1. Screw loader

    Charging capacity 300kg/h
    Charging pipe Diameter Φ102mm
    Material case volume 150kg
    Motor Power 1.1KW
    Material Made of stainless steel



    2. Vertical force feeder

    Structure Vertical type
    Motor power 1.1kw
    Feeding capacity 100kg/h
    Material Made of stainless steel

    SJ100/28 Single Screw Extruder
    Screw Diameter 100mm
    Barrel & screw 38CrMoAIA, nitride treatment
    Reducer High torque rigid gear surface reducer
    L/D 28:1
    Main Motor Power 37KW, Siemens motor
    Extrusion speed control Adopt 37KW ABB inverter
    Heating system Adopt cast aluminium heaters
    Cooling system Adopt air fan cooling
    Screw Rotate Speed 1-90R/MIN
    Main electrics

    Omron temperature meter
    Siemens contactor

    Extrusion Capacity 100KG/H


    3. SJ90/10 Single Screw Extruder

    Screw Diameter 90mm
    Barrel & screw 38CrMoAIA, nitride treatment,
    Reducer ZLYJ 133 High torque rigid gear surface reducer
    L/D 10:1
    Main Motor Power 11KW, Siemens motor
    Extrusion speed control Adopt 11W ABB inverter
    Heating system Adopt cast aluminium heating
    Cooling system Adopt air fan cooling
    Screw Rotate Speed 1-90R/MIN
    Main electrics

    Omron temperature meter
    Siemens contactor

    Extrusion Capacity 100KG/H


    4. Mould and hydraulic Screen Exchanger

    Mould Material

    40Cr steel,
    Hardening and Tempering Treatment

    Heat Power 4KW* 3Zones
    Hydraulic screen changer Two working position, none-stop
    Motor powr 2.2Kw
    Max Pressure 16Mpa


    5. Water cooling tank

    Length 3meters
    Conduit rollers 4sets
    Material Made by stainless steel


    6. Air dryer

    Air blowing power 1.5KW
    Conduit rollers 2pcs
    Material contact part Made by stainless steel


    7.pelletizer

    Motor power 3kw
    Pelletizing numbers 3 pcs.
    Dimension of palletizing blade ∮200mm x 100
    Pelletizing speed control Adopt 3kw inverter
    Rotating speed of palletizing blade 0-100 r/min


    8. Air blowing system and silo

    Blower power 2.2kw
    Conveying pipe diameter 102mm
    Hopper volume 800L, with closing valve
    Material contact part Made by stainless steel
